Digital keypad - DEO-K201A £34.87
@ 6.29mb
The DEO-K201A is a fully featured digital keypad with a 1mm stainless steel front plate with black colour ABS plastic surface mount back box and is ideal for internal use
Main features
Rain hood: No
Input: 11-15V DC input
IP rating: Internal use only
Keypad: Back - lit blue illuminated button keypad with 1mm stainless steel facia
Back box: Black ABS plastic surface mount
User codes: 1000 User codes for relay 1 and 100 user codes for relay 2
Relay outputs: Two, 1 x 5 and 1 x 1amp relay output with N.C. & N.O. contacts
Exit button input: Yes
A) All features are keyboard programmable
B) Non-volatile memory in the event of a power failure
C) 3 LED display indication status
Fitting: Surface mount
Size: 117h x 74w x 46d
find out more
| | Digital keypad - DEO-K201 with proximity card reader  £41.35
@ 6.29mb
The DEO-K201 is a fully featured digital keypad with a 1mm stainless steel front plate with black colour ABS plastic surface mount back box, built-in Proximity RFID/EM card reader and is ideal for internal use
Main features
Rain hood: No
Input: 11-15V DC input
IP rating: Internal use only
Keypad: Back - lit blue illuminated button keypad with 1mm stainless steel facia
Back box: Black ABS plastic surface mount
User codes: 1000 User codes and/or key fobs or cards for relay 1 and 100 user codes and or key fobs or cards for relay 2
Card or key fob: The keypad uses standard RFID proximity cards or key fobs
Relay outputs: Two, 1 x 5 and 1 x 1amp relay output with N.C. & N.O. contacts
Exit button input: Yes
A) All features are keyboard programmable
B) Non-volatile memory in the event of a power failure
C) 3 LED display indication status
Fitting: Surface mount
Supplied with: 12 x RFID proximity cards (Plain white)
Size: 117h x 74w x 46d
find out more
| | Digital keypad - DEO-K301 with proximity card reader  £74.00
@ 6.55mb
The DEO-K301 is an IP65 rated is a fully featured high security digital keypad with built-in Proximity RFID/EM card reader with 1.5mm stainless steel facia, surface mounted with rain hood - ideal for internal or external use
Main features
Rain hood: Yes
Input: 12-24V DC input
IP rating: IP65, weather resistant and vandal resistant
Keypad: Back - lit blue illuminated button keypad with 1.5mm stainless steel facia
Back box: Die cast and powder coat painted black surface mount
User codes: 1000 User codes and/or key fobs or cards for relay 1 and 100 user codes and or key fobs or cards for relays 2 & 3
Card or key fob: The keypad uses standard RFID proximity cards or key fobs
Relay outputs: Three, 1 x 5 and 2 x 1amp relay output with N.C. & N.O. contacts
Exit button input: Yes
A) All features are keyboard programmable
B) Non-volatile memory in the event of a power failure
C) 3 LED display indication status
Fitting: Surface mount
Supplied with: 12 x RFID proximity cards (Plain white)
Size: 125h x 79w x 46/54d (bottom side/upper side) mm
find out more
|
|
Digital keypad - DEO-K301A £67.48
@ 6.55mb
The DEO-K301A is an IP65 rated is a fully featured high security digital keypad with 1.5mm stainless steel facia, surface mounted with rain hood - ideal for internal or external use
Main features
Rain hood: Yes
Input: 12-24V DC input
IP rating: IP65, weather resistant and vandal resistant
Keypad: Back - lit blue illuminated button keypad with 1.5mm stainless steel facia
Back box: Die cast and powder coat painted black surface mount
User codes: 1000 User codes for relay 1 and 100 user codes for relays 2 & 3
Relay outputs: Three, 1 x 5 and 2 x 1amp relay output with N.C. & N.O. contacts
Exit button input: Yes
A) All features are keyboard programmable
B) Non-volatile memory in the event of a power failure
C) 3 LED display indication status
Fitting: Surface mount
Size: 125h x 79w x 46/54d (bottom side/upper side) mm
find out more

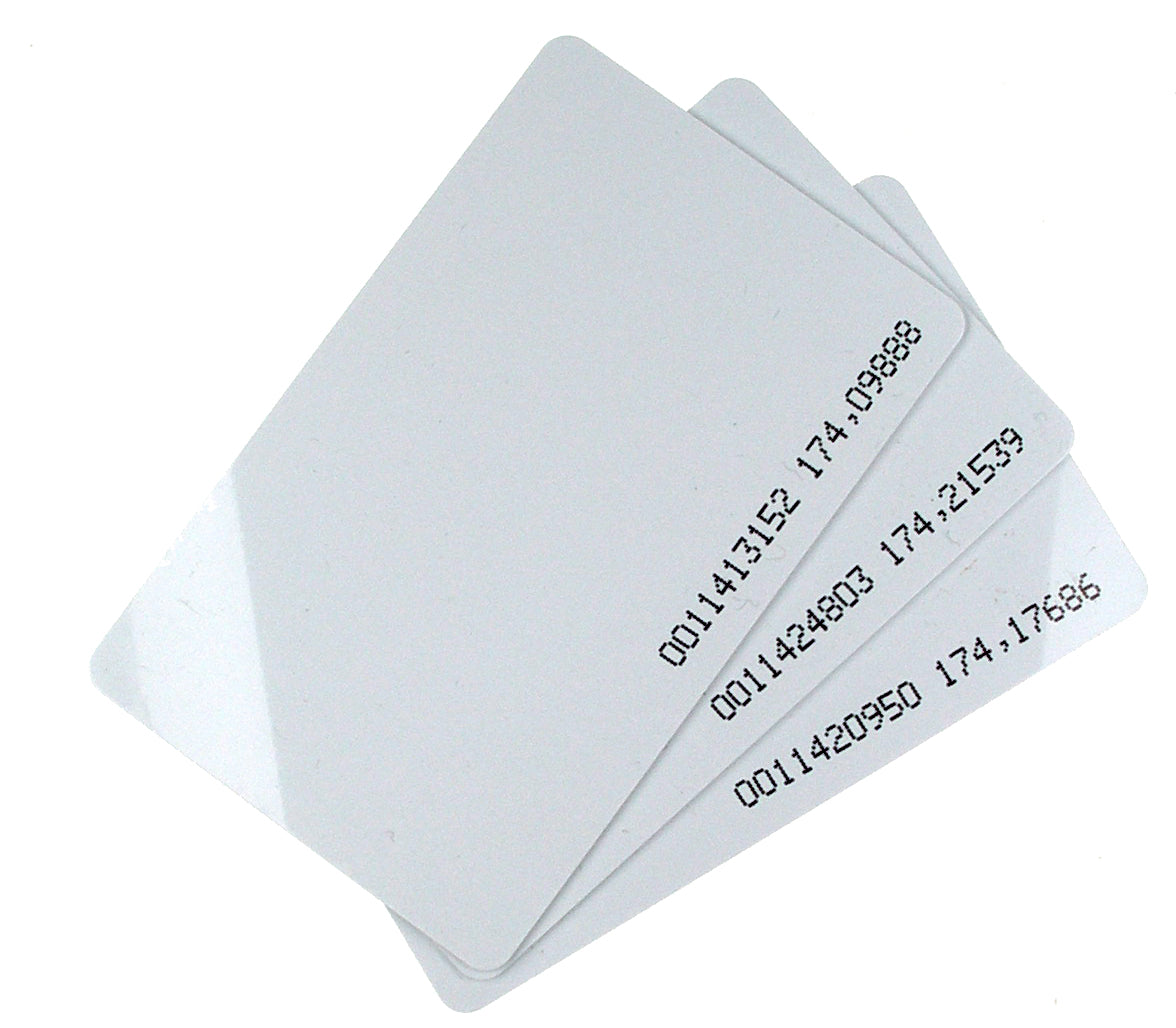

| | RFID Contactless proximity cards - pack of 10 £11.94 Standard Proximity EM-RFID 125khz 64 bit contactless card for any access control system using this frequency, pc access control system or our range of pc access controlled systems, K201/K301 access control keypads and even our Prestige 596 ID range of video entry systems
Colour: White plain - Thin 0.8mm
Supplied: Pack of 10
Size: 54h x 85w x 0.8d

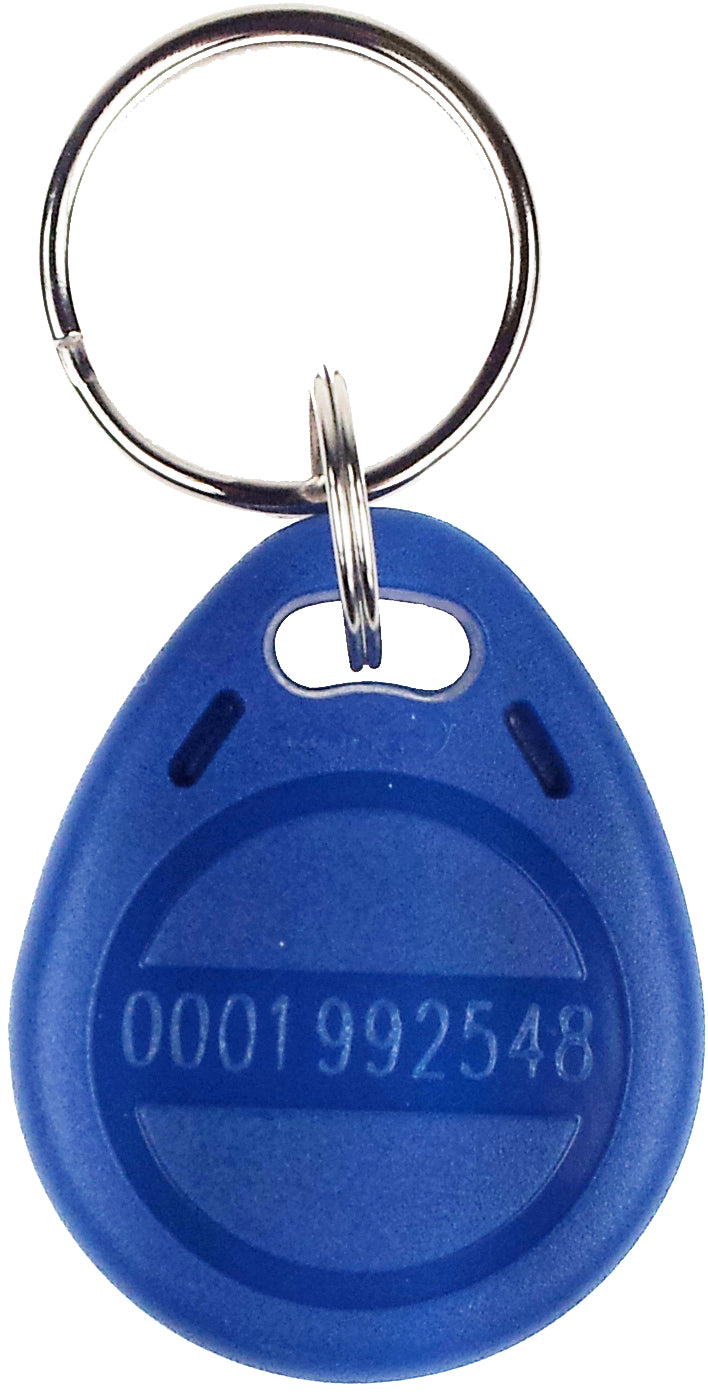

find out more | | RFID Key fob - pack of 10 £11.94
Standard Proximity EM-RFID 125khz 64 bit key fob for any access control system using this frequency, pc access control system or our range of pc access controlled systems, K201/K301 access control keypads and even our Prestige 596 ID range of video entry systems
Colour: Blue
Supplied: Pack of 10
Size: 34h x 27w x 6d
find out more
|
|

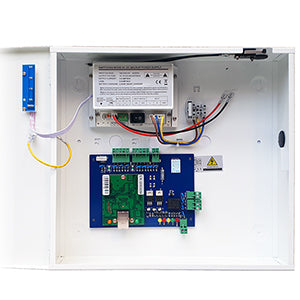

2002/485 PC access controlled system - Two door  £318.62
@ 1.59mb
This is a two door complete pc access control system that is operated, controlled and programmed via your pc to make this a fully functional computer access control system
It has so much to offer that we would suggest downloading the specification for this system at the top of this page and also do please read the 'FAQ's on this system' found above
It can manage up to 20,000 users
Up to 100,000 offline storage in the event of a power failure
The computer access controlled system is supplied with the following items:
1 x 2002/485 two door pc access control board
1 x Software
2 x BTS-01A Card reader (RFID 125khz)
10 x Contactless proximity cards (as below)
1 x Serial cable (9 PIN)
1 x RS232/485 convertor
1 x 5 amp 12v dc power supply (the control board is housed within the power supply cabinet)
The system is NOT supplied with:
Lock release/s (Standard or magnetic lock is optional)
Exit button/s (Optional)
Serial to USB convertor
Size of power supply: 228h x 273w x 65d
find out more

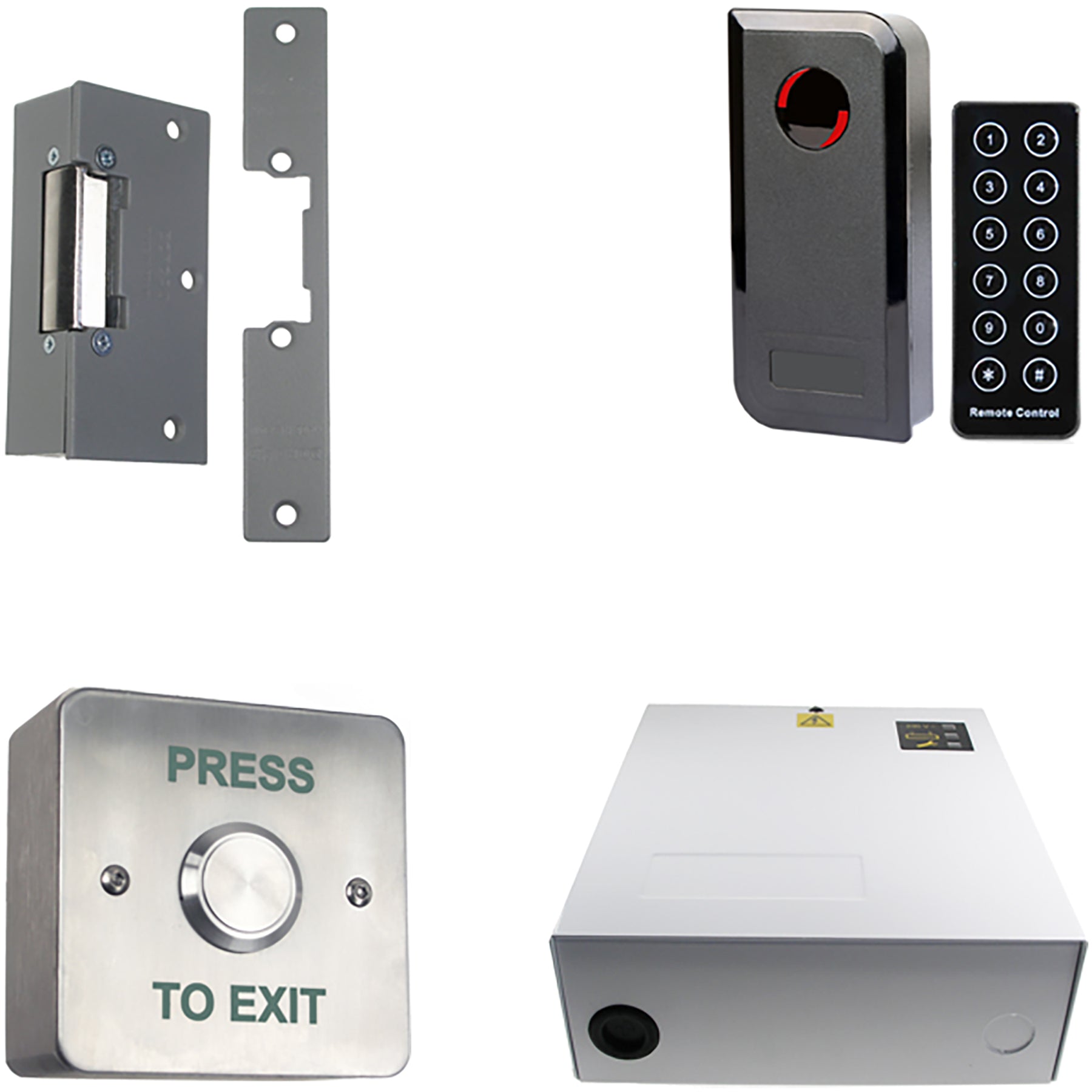

| | Access control system 10 - With proximity card reader £112.64
@ 6.29mb
A complete access control system - ideal for the small office, home or any other location you wish to control access to
This system is supplied with:

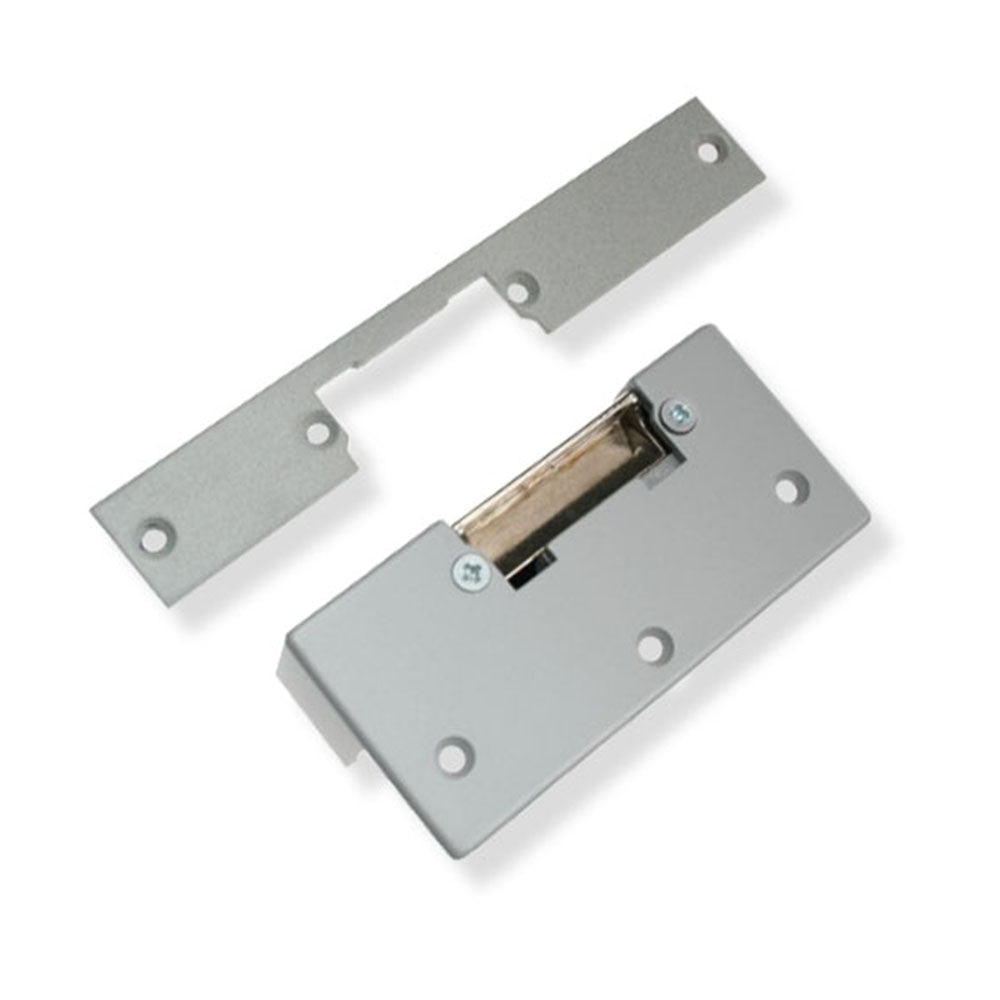

1 x Electric lock release (Fail locked, power required to un-lock)
1 x K201 digital keypad with up to 1000 user codes and/or key fobs
12 x RFID proximity cards (Plain white)
1 x SS1 stainless steel exit button (Surface mounted)
1 x 12v dc power supply
find out more

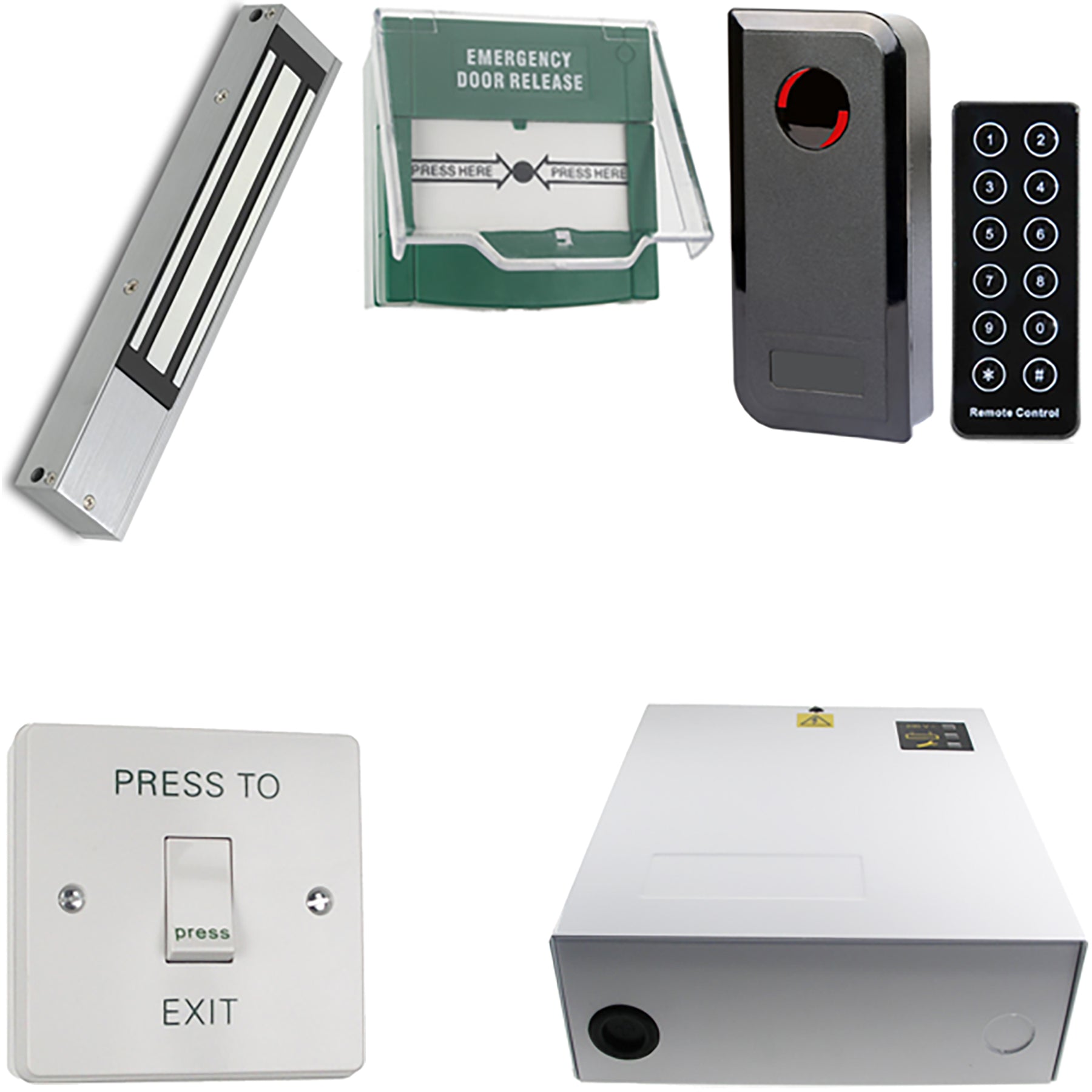

| | Access control system 19 - With proximity card reader £194.80
@ 9.02mb
A complete access control system - ideal for the small office, home or any other location you wish to control access to
This system is supplied with:
1 x Magnetic lock release with adjustable ZL brackets (Fail open, power required to lock)
1 x Emergency break glass resettable switch with protection cover
1 x DK2882 digital keypad with up to 1000 user codes and/or key fobs
12 x RFID proximity cards (Plain white)
1 x PB1 plastic exit button (Surface mounted)
1 x 12v dc power supply
find out more
|
|

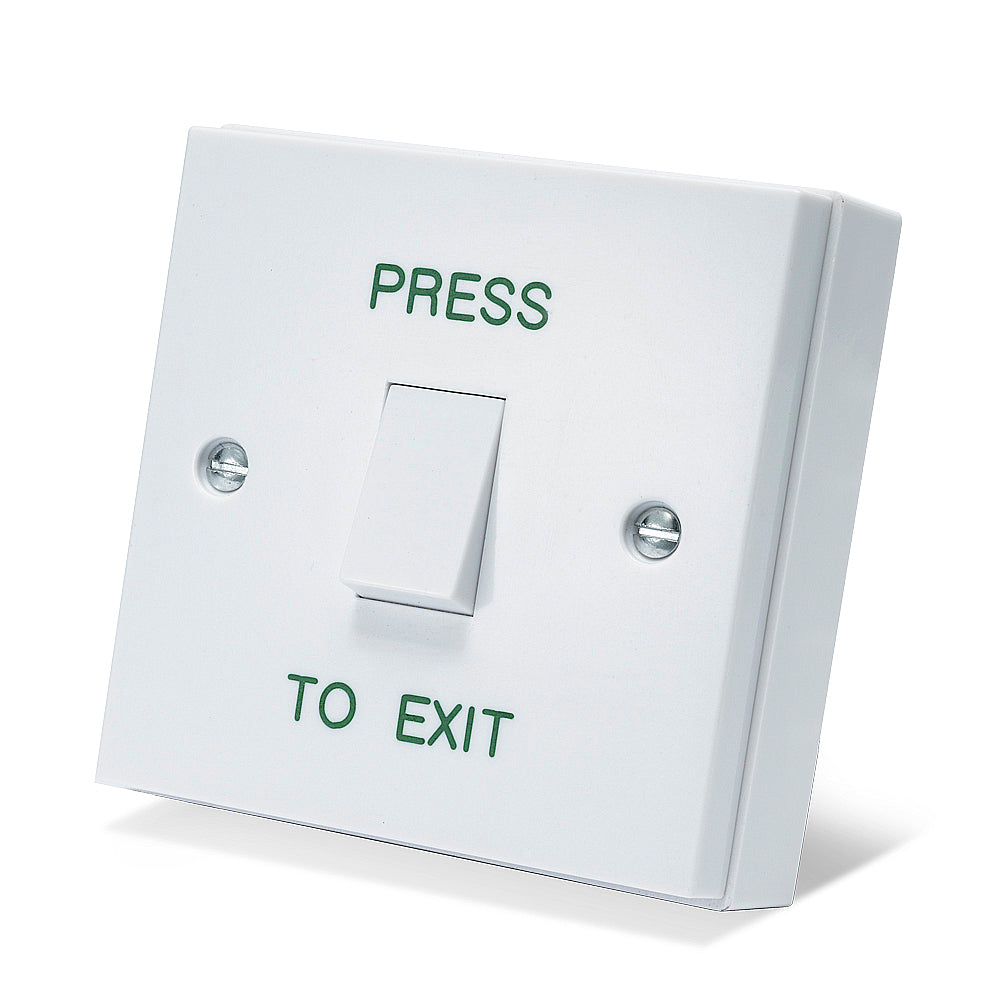

Plastic exit button PB1N £10.74
Surface mounted plastic exit button
Single gang surface mount
Changeover contacts (NO/NC)
Size: 85H x 85W
find out more

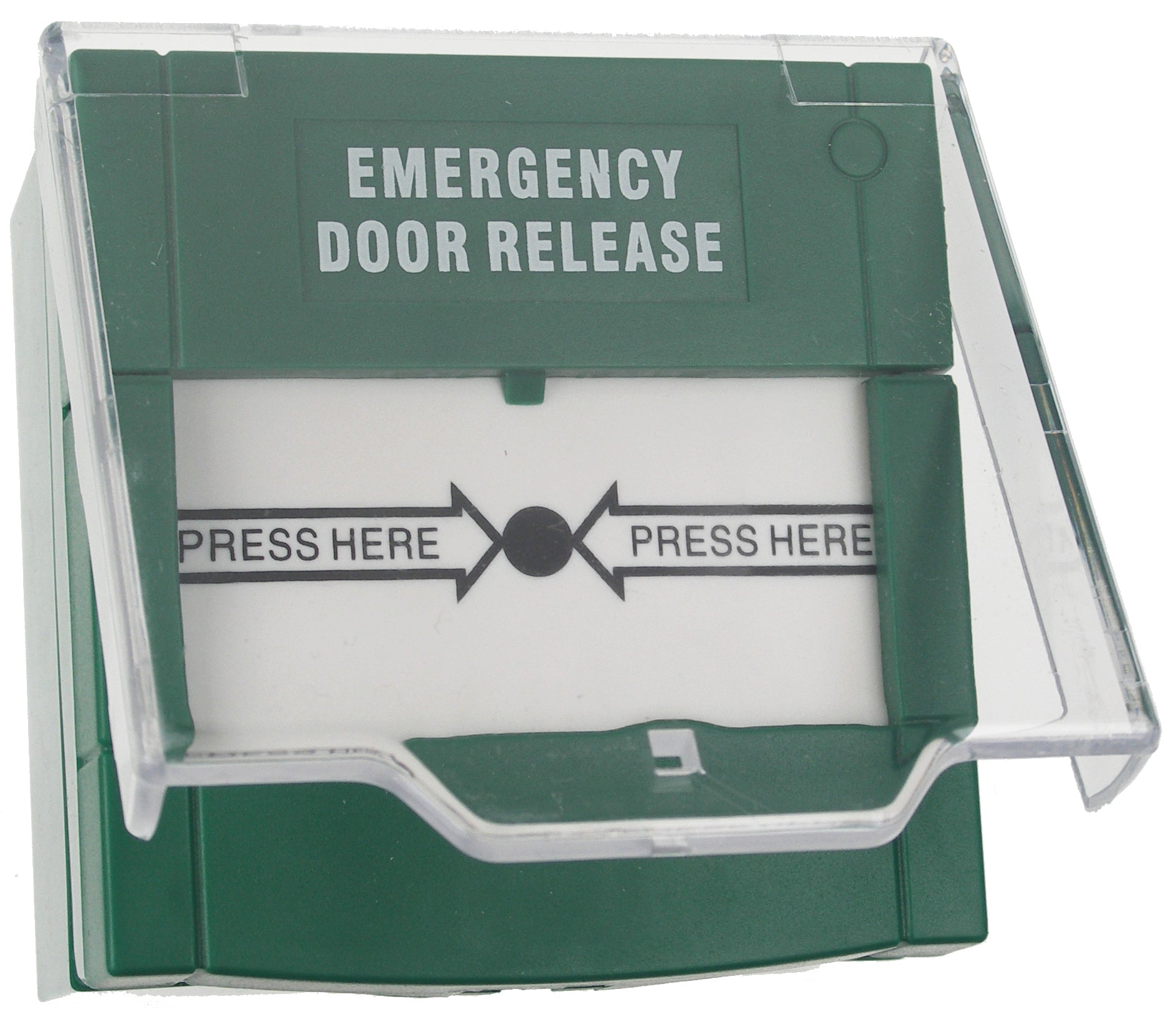

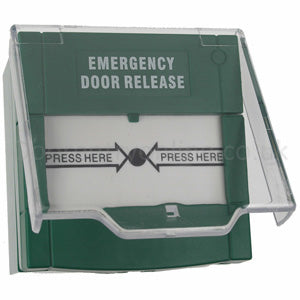

| | Emergency break glass reset switch with cover £13.74
Surface mounted green emergency break glass reset switch with protective cover supplied with 1 x reset key
Single pole with double output for C/NC/NO connections
Size: 90H x 86W
find out more
| | Emergency break glass reset switch £10.74
Surface mounted green emergency break glass reset switch supplied with 1 x reset key
Single pole with double output for C/NC/NO connections
Size: 90H x 86W
find out more
|
|

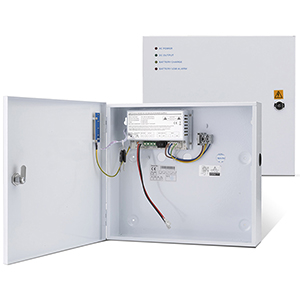

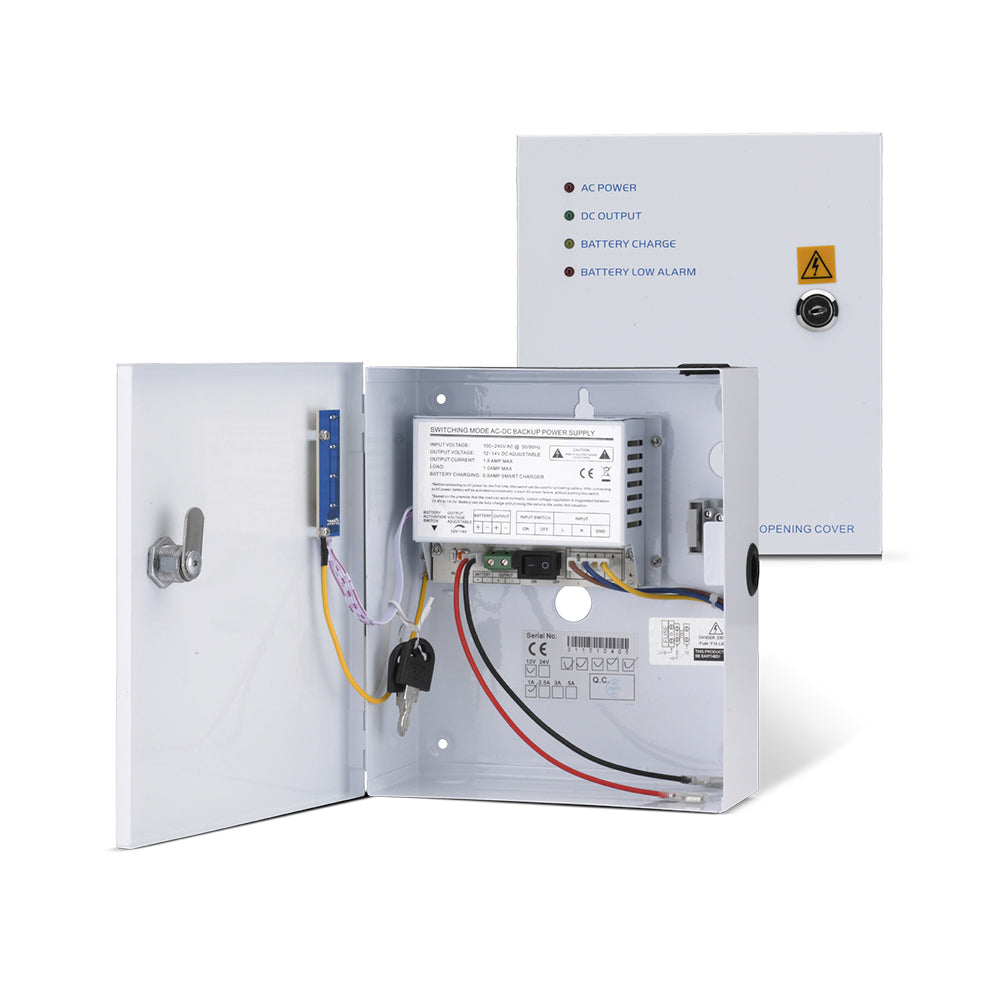

Power supply PSB 1amp £32.00
12v DC power supply unit
1amp rating
Ivory enclosed cabinet
Battery charger facility
Side air vent holes
Battery charger facility
Size: 210H x 235W x 90D
find out more

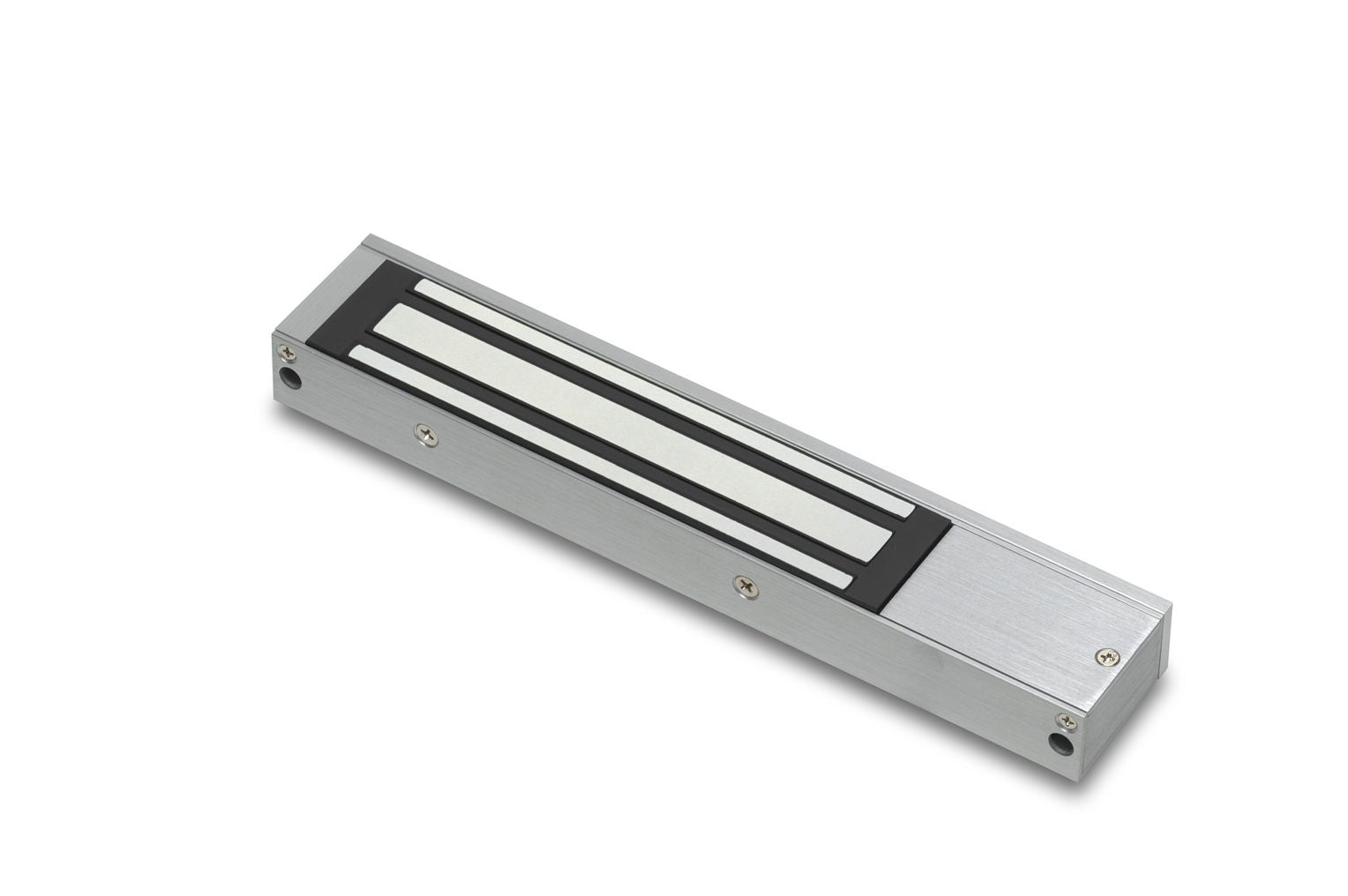

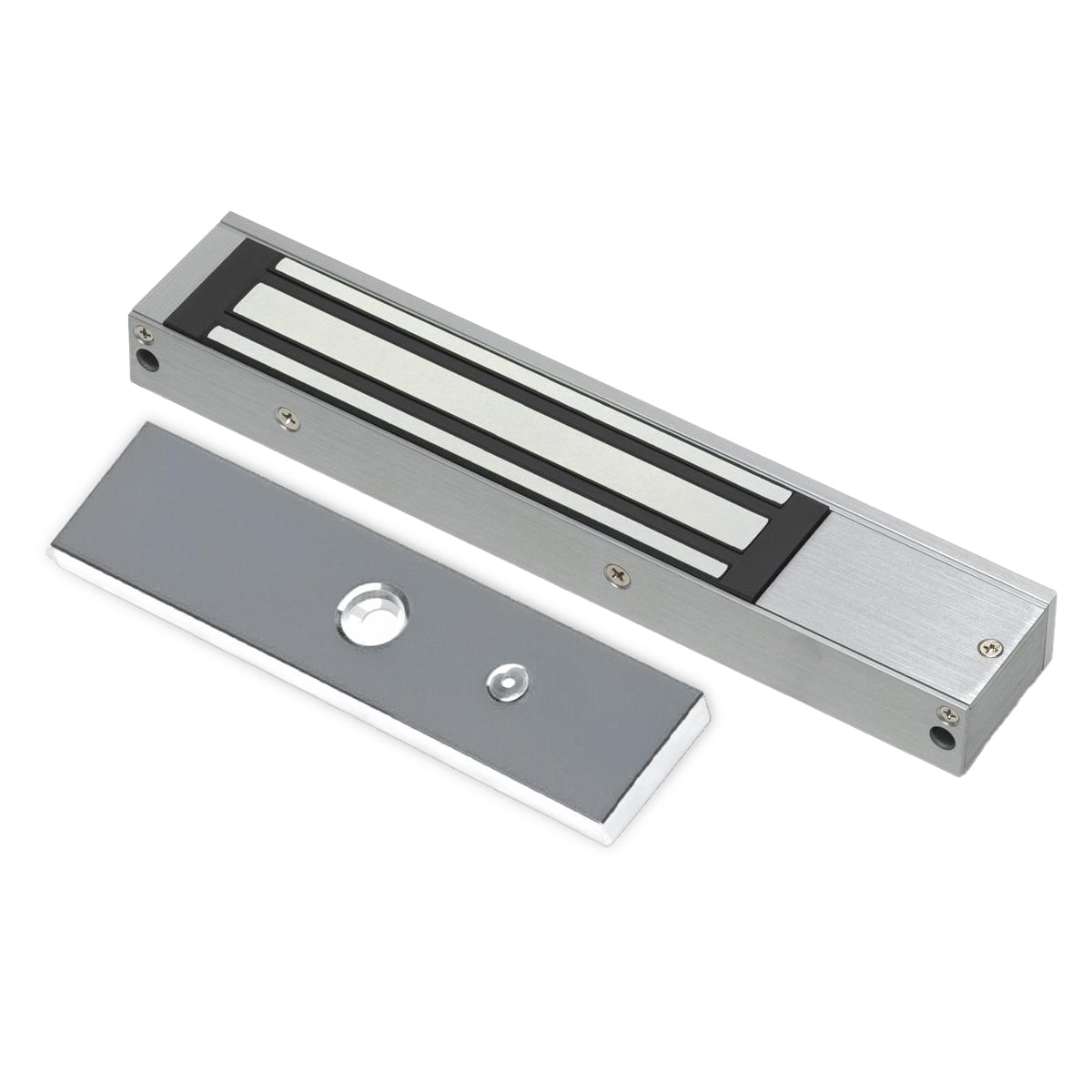

| | Magnetic lock 10001 £31.50
Surface mount slimline magnetic lock - un-monitored
12v/24v dc selectable
272kg (600lbs) holding force
500ma @ 12v dc - 250ma @ 24v dc
This magnetic lock is supplied with:
1 x Magnetic lock

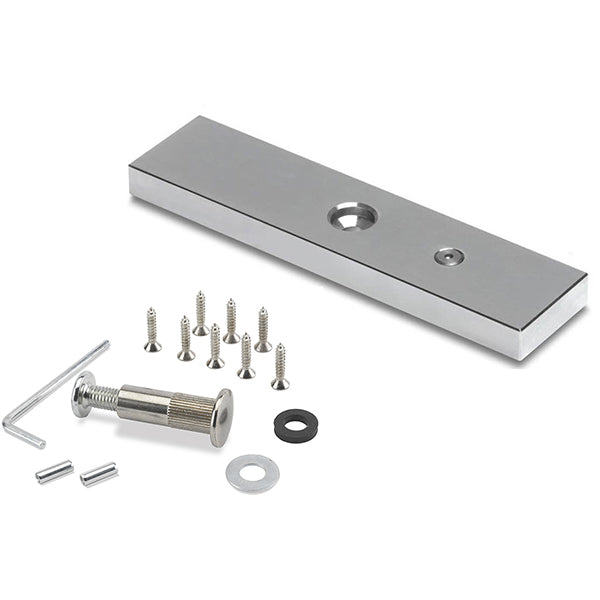

1 x Armature plate

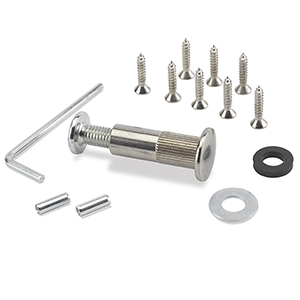

1 x Fixing kit
Magnet size: 250L x 42W x 26D
Armature plate size: 185L x 38W x 12D
find out more
| | Magnetic lock 10002 £37.91
Surface mount slimline magnetic lock- monitored
12v/24v dc selectable
272kg (600lbs) holding force
500ma @ 12v dc - 250ma @ 24v dc
This magnetic lock is supplied with:
1 x Magnetic lock
1 x Armature plate

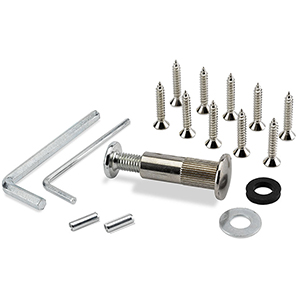

1 x Fixing kit
Magnet size: 250L x 42W x 26D
Armature plate size: 185L x 38W x 12D
find out more
|
|
Magnetic lock GL1200 £96.08
Surface mount single magnetic lock - monitored
12v/24v dc selectable
544kg (1200lbs) holding force
500ma @ 12v dc - 250ma @ 24v dc
This magnetic lock is supplied with:
1 x Magnetic lock
1 x Armature plate

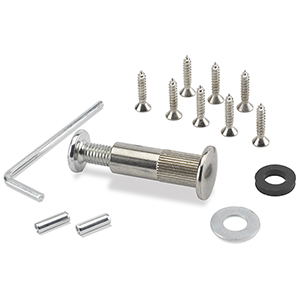

1 x Fixing kit
Magnet size: 220L x 62W x 40D
Armature plate size: 185L x 62W x 16D
find out more
| | Magnetic lock GL850 £86.12
Surface mount single Midi magnetic lock
12v/24v dc selectable
385kg (850lbs) holding force
500ma @ 12v dc - 250ma @ 24v dc
This magnetic lock is supplied with:
1 x Magnetic lock
1 x Armature plate
1 x Fixing kit
Magnet size: 232L x 45W x 30D
Armature plate size: 185L x 45W x 14D
find out more
| | |
|
2002.net PC access controlled system - Two door £369.52
@ 1.59mb
This is a two door complete TCP/IP pc access control system that is operated, controlled and programmed via your pc to make this a fully functional computer access control system
It has so much to offer that we would suggest downloading the specification for this system at the top of this page and also do please read the 'FAQ's on this system' found above
It can manage up to 20,000 users
Up to 100,000 offline storage in the event of a power failure
The computer access controlled system is supplied with the following items:
1 x 2002.net single door pc access control board
1 x Software
2 x BTS-01A Card readers (RFID 125khz)
10 x Contactless proximity cards (as below)
1 x 5 amp 12v dc power supply (the control board is housed within the power supply cabinet)
The system is NOT supplied with:
Lock release/s (Standard or magnetic lock is optional)
Exit button/s (Optional)
Size of power supply: 228h x 273w x 65d
find out more
| | 2004.net PC access controlled system - Four door £470.10
@ 1.59mb
This is a four door complete TCP/IP pc access control system that is operated, controlled and programmed via your pc to make this a fully functional computer access control system
It has so much to offer that we would suggest downloading the specification for this system at the top of this page and also do please read the 'FAQ's on this system' found above
It can manage up to 20,000 users
Up to 100,000 offline storage in the event of a power failure
The computer access controlled system is supplied with the following items:
1 x 2004.net single door pc access control board
1 x Software
4 x BTS-01A Card reader (RFID 125khz)
10 x Contactless proximity cards (as below)
1 x 5 amp 12v dc power supply (the control board is housed within the power supply cabinet)
The system is NOT supplied with:
Lock release/s (Standard or magnetic lock is optional)
Exit button/s (Optional)
Size of power supply: 228h x 273w x 65d
find out more
| | 2001.net PC access controlled system - Single door £291.80
@ 1.59mb
This is a single door complete TCP/IP pc access control system that is operated, controlled and programmed via your pc to make this a fully functional computer access control system
It has so much to offer that we would suggest downloading the specification for this system at the top of this page and also do please read the 'FAQ's on this system' found above
It can manage up to 20,000 users
Up to 100,000 offline storage in the event of a power failure
The computer access controlled system is supplied with the following items:
1 x 2001.net single door pc access control board
1 x Software
1 x BTS-01A Card reader (RFID 125khz)
10 x Contactless proximity cards (as below)
1 x 5 amp 12v dc power supply (the control board is housed within the power supply cabinet)
The system is NOT supplied with:
Lock release/s (Standard or magnetic lock is optional)
Exit button/s (Optional)
Size of power supply: 228h x 273w x 65d
find out more
|
|

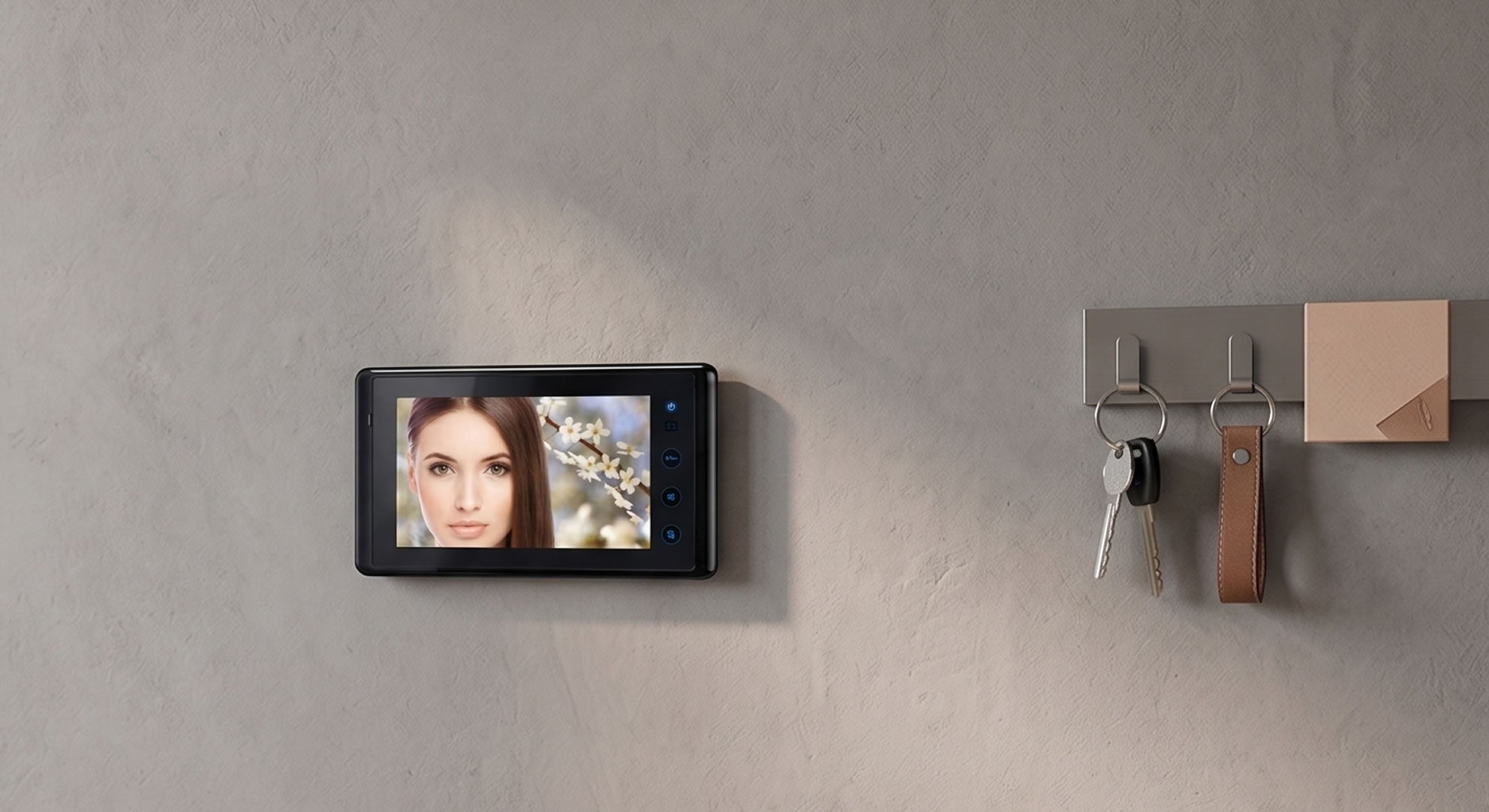

DMR3 - Colour video door entry system  £676.31
@ 1.40mb
Colour video entry system with 7" video monitor
A very stunning 3 way HANDS FREE video door entry system with a 7" colour TFT video screen, 2 wire connections and up to 200 meter operational range

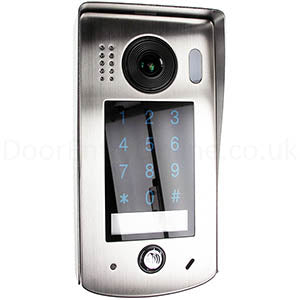

Door panel:
IP 45 rated
Surface mounted 1.5mm anodised aluminium with rain hood (Not pictured) and colour 1/3 Sony CCD camera
Adjustable camera angle
Infrared LED's for night time vision
Blue Led indication upon pressing a call button
Call button reassurance tone
Lock release reassurance tone
Crystal clear hands free audio
1 x relay lock release output
Video monitor:
7" Digital colour touch button operation with silver effect manual buttons
Gloss black in colour
Touch button manual user buttons
Intercom facility (If additional monitor is purchased)
This system is supplied with:
3 x Video monitors
1 x Door panel with rainhood
1 x PS5 Power supply - 4.5amp open framed, un-housed
Monitor size: 144h x 242w x 26d
Door panel size: 308l x 123w x 18d (Facia of call panel)
find out more
| | DMR4 - Colour video door entry system  £832.55
@ 1.40mb
Colour video entry system with 7" video monitor
A very stunning 4 way HANDS FREE video door entry system with a 7" colour TFT video screen, 2 wire connections and up to 200 meter operational range
Door panel:
IP 45 rated
Surface mounted 1.5mm anodised aluminium with rain hood (Not pictured) and colour 1/3 Sony CCD camera
Adjustable camera angle
Infrared LED's for night time vision
Blue Led indication upon pressing a call button
Call button reassurance tone
Lock release reassurance tone
Crystal clear hands free audio
1 x relay lock release output
Video monitor:
7" Digital colour touch button operation with silver effect manual buttons
Gloss black in colour
Touch button manual user buttons
Intercom facility (If additional monitor is purchased)
This system is supplied with:
4 x Video monitors
1 x Door panel with rainhood
1 x PS5 Power supply - 4.5amp open framed, un-housed
Monitor size: 144h x 242w x 26d
Door panel size: 308l x 123w x 18d (Facia of call panel)
find out more
| | DMR5 - Colour video door entry system  £991.08
@ 1.40mb

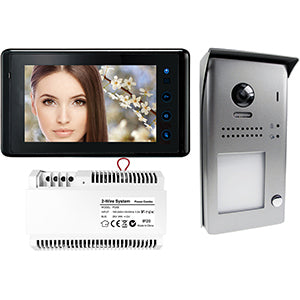

Colour video entry system with 7" colour video monitor
A very stunning 5 way HANDS FREE video door entry system with a 7" colour TFT video screen, 2 wire connections and up to 200 meter operational range
Door panel:
IP 45 rated
Surface mounted 1.5mm anodised aluminium with rain hood (Not pictured) and colour 1/3 Sony CCD camera
Adjustable camera angle
Infrared LED's for night time vision
Blue Led indication upon pressing a call button
Call button reassurance tone
Lock release reassurance tone
Crystal clear hands free audio
1 x relay lock release output
Video monitor:
7" Digital colour touch button operation with silver effect manual buttons
Gloss black in colour
Touch button manual user buttons
Intercom facility (If additional monitor is purchased)
This system is supplied with:
5 x Video monitors
1 x Door panel with rainhood
1 x PS5 Power supply - 4.5amp open framed, un-housed
Monitor size: 144h x 242w x 26d
Door panel size: 308l x 123w x 18d (Facia of call panel)
find out more
|
|
DMR6 - Colour video door entry system  £1,145.03
@ 1.40mb
Colour video entry system with 7" video monitor
A very stunning 6 way HANDS FREE video door entry system with a 7" colour TFT video screen, 2 wire connections and up to 200 meter operational range
Door panel:
IP 45 rated
Surface mounted 1.5mm anodised aluminium with rain hood (Not pictured) and colour 1/3 Sony CCD camera
Adjustable camera angle
Infrared LED's for night time vision
Blue Led indication upon pressing a call button
Call button reassurance tone
Lock release reassurance tone
Crystal clear hands free audio
1 x relay lock release output
Video monitor:
7" Digital colour touch button operation with silver effect manual buttons
Gloss black in colour
Touch button manual user buttons
Intercom facility (If additional monitor is purchased)
This system is supplied with:
6 x Video monitors
1 x Door panel with rainhood
1 x PS5 Power supply - 4.5amp open framed, un-housed
Monitor size: 144h x 242w x 26d
Door panel size: 308l x 123w x 18d (Facia of call panel)
find out more
| | DMR7 - Colour video door entry system  £1,301.03
@ 1.40mb
Colour video entry system with 7" video monitor
A very stunning 7 way HANDS FREE video door entry system with a 7" colour TFT video screen, 2 wire connections and up to 200 meter operational range
Door panel:
IP 45 rated
Surface mounted 1.5mm anodised aluminium with rain hood (Not pictured) and colour 1/3 Sony CCD camera
Adjustable camera angle
Infrared LED's for night time vision
Blue Led indication upon pressing a call button
Call button reassurance tone
Lock release reassurance tone
Crystal clear hands free audio
1 x relay lock release output
Video monitor:
7" Digital colour touch button operation with silver effect manual buttons
Gloss black in colour
Touch button manual user buttons
Intercom facility (If additional monitor is purchased)
This system is supplied with:
7 x Video monitors
1 x Door panel with rainhood
1 x PS5 Power supply - 4.5amp open framed, un-housed
Monitor size: 144h x 242w x 26d
Door panel size: 308l x 123w x 18d (Facia of call panel)
find out more
| | DMR8 - Colour video door entry system  £1,457.51
@ 1.40mb
Colour video entry system with 7" video monitor
A very stunning 8 way HANDS FREE video door entry system with a 7" colour TFT video screen, 2 wire connections and up to 200 meter operational range
Door panel:
IP 45 rated
Surface mounted 1.5mm anodised aluminium with rain hood (Not pictured) and colour 1/3 Sony CCD camera
Adjustable camera angle
Infrared LED's for night time vision
Blue Led indication upon pressing a call button
Call button reassurance tone
Lock release reassurance tone
Crystal clear hands free audio
1 x relay lock release output
Video monitor:
7" Digital colour touch button operation with silver effect manual buttons
Gloss black in colour
Touch button manual user buttons
Intercom facility (If additional monitor is purchased)
This system is supplied with:
8 x Video monitors
1 x Door panel with rainhood
1 x PS5 Power supply - 4.5amp open framed, un-housed
Monitor size: 144h x 242w x 26d
Door panel size: 308l x 123w x 18d (Facia of call panel)
find out more
|
|
R3 Card reader - RFID 125khz £60.50
Vandal resistant EM-RFID 125khz 64 bit Proximity reader that will work with our pc access control system or any other pc controlled system using this frequency
It is not a standalone unit for any other system
Main features
Epoxy resin filled for enhanced weather protection
1mm cast alloy body
IP rating: IP66, weather resistant and vandal resistant
LED indication
Colour: Silver
Voltage: 12v dc
Current: 100mA
Reading range: 30mm - 60mm
Card type: EM-RFID
Communication distance: 100Mtr
Fitting: Surface mount
Size: 128h x 82w x 28d
find out more
| | | | |
|
