Wiring a basic access control door sounds simple on paper. In practice, the details matter. A well-wired system gives you reliable entry, safe exit, and fewer call-backs. A poorly wired one can cause lock failures, nuisance faults, or doors that do not release when they should.
This guide explains how to wire a door access control system in a clear, practical way. It covers the main components, a typical wiring layout, maglock wiring, keypad wiring, the difference between Normally Open and Normally Closed contacts, common mistakes, and a troubleshooting checklist. If you are planning a small installation or comparing a door access control kit, this guide will help you understand the basics.
Important Disclaimer
This article is for general guidance only. Access control wiring should be carried out by a competent installer or qualified professional and must follow the manufacturer’s instructions, site requirements, and all relevant electrical, fire safety, and building regulations. If the door forms part of an escape route or fire exit, extra care is needed and specialist advice may be required.
What Is a Basic Door Access Control System?
A basic system controls who can enter through a door and how the door is released. In most cases, a user presents a code, card, or fob at the secure side of the entrance. The system checks the credential and unlocks the door for a short period if access is allowed.
A standard single-door setup usually includes:
- a power supply
- a keypad or reader
- a lock or maglock
- an exit button
- an emergency release where required
- sometimes a separate controller
If you are buying components together, start with Access Control Kits.
Basic Components of an Access Control System
Before looking at how to wire a door access control system, it helps to understand what each part does.
Power Supply Unit
The PSU provides power to the system. It may feed the keypad, controller, and locking device, depending on the setup. The correct voltage and current output matter. An undersized PSU can lead to unstable operation, weak lock holding, or random resets.
Browse suitable Power Supplies.
Keypad or Reader
The keypad or reader is the user interface on the entry side of the door. A keypad allows entry by PIN code. A reader allows entry by card or fob. Some units combine both functions.
See Keypads.
Lock or Maglock
The lock does the physical securing. This could be an electric strike, electric lock release, or electromagnetic lock. The wiring method depends partly on whether the lock is fail safe or fail secure.
See Magnetic Locks.
Exit Button
The exit button is fitted on the secure side of the door. It allows users to leave without presenting a code or fob. In a simple system, pressing the button interrupts or triggers the lock circuit for a timed release.
See Exit Buttons.
Emergency Release
An emergency release is commonly used with maglocks and on doors where safe exit is critical. It cuts power to the lock in an emergency.
See Emergency Releases.
Controller
Some systems use a separate access controller. Others have the control built into the keypad or reader. A separate controller can improve security because the decision-making unit is mounted on the secure side.

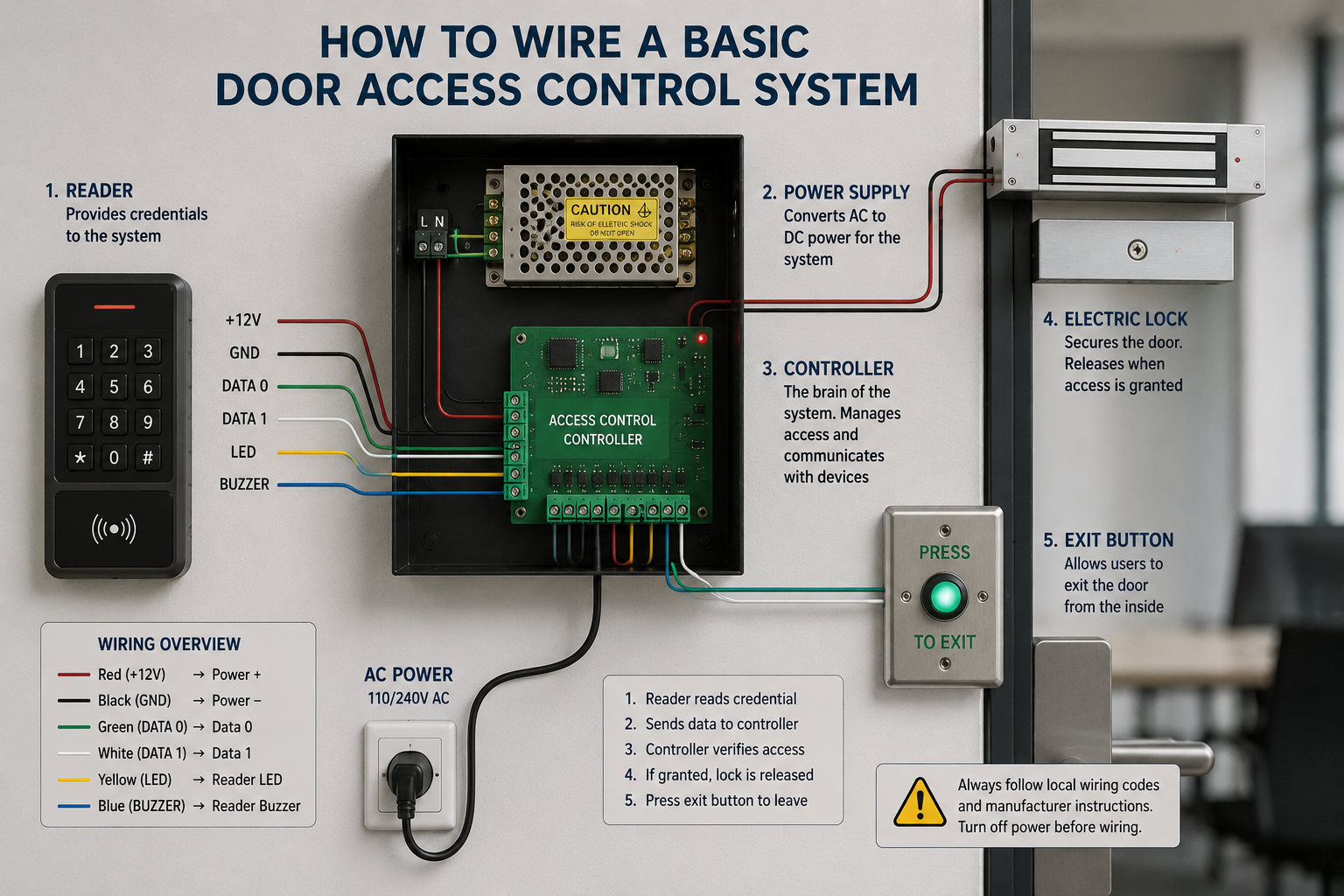

Typical Access Control Wiring Setup
A basic access control wiring diagram usually follows one logic path. Power leaves the PSU, passes through the control and release devices, and reaches the locking hardware in the correct state for the door type.
Wiring the Power Supply
The PSU is the starting point for most systems. It supplies DC voltage to the keypad, controller, and lock.
What to check before wiring the PSU
Before connecting anything, check:
- supply voltage required by each device
- lock current draw
- cable length and voltage drop
- whether battery backup is needed
- whether the unit includes fire alarm or relay outputs
The PSU should match both the lock type and the overall load. This is especially important in maglock wiring because maglocks can draw more current than small standalone readers.
Wiring the Keypad or Reader
Keypad wiring varies by product, but most units follow a common pattern.
Typical keypad or reader terminals
A typical unit may include terminals for:
- positive power input
- negative power input
- relay common
- relay NO
- relay NC
- exit input
- door contact input
- alarm output
The keypad or reader receives power from the PSU. Its relay output then controls the lock circuit directly or sends a signal to a separate controller.
Standalone keypad wiring
In a standalone system, the keypad often acts as both reader and controller. The lock output is wired through the keypad relay. This is common in smaller single-door systems and many packaged door access control kit options.
Reader wiring with separate controller
In a larger or more secure setup, the external reader only reads the credential. The access controller makes the decision and operates the lock relay from the secure side of the door.
Wiring the Lock or Maglock
This is where many installers focus most of their attention. The correct method depends on the locking type.
Maglock wiring basics
Maglock wiring is usually based on a fail safe principle. A maglock stays locked when power is applied and releases when power is removed. That means the lock is energised in normal operation.
A simple maglock circuit often routes positive power through:
- the PSU
- emergency release
- exit button or relay
- maglock positive
The negative returns directly to the PSU.
In many cases, the emergency release is wired in series so that activating it cuts power completely to the maglock.
Electric strike or lock release wiring
An electric strike may be fail secure or fail safe depending on the model. A fail secure strike usually stays locked when power is off and releases when power is applied. A fail safe release does the opposite.
This is why product specifications matter. Never assume all electric locks wire the same way.
Wiring the Exit Button
The exit button allows release from the secure side.
How the exit button works
The button either:
- sends a signal to the keypad or controller input, or
- interrupts the lock circuit directly
In many better setups, the button triggers the controller rather than breaking power itself. That gives more controlled release timing and keeps the system logic cleaner.
Exit button wiring with a maglock
In simple maglock wiring, the exit button may be wired to break the positive feed to the magnet. In more advanced systems, the exit button triggers a relay or controller input, and that relay removes power to the lock for a few seconds.
Wiring the Emergency Release
An emergency release should be treated as a life safety device, not just another switch.
Why emergency releases matter
On doors using maglocks, especially escape routes, the emergency unit provides a direct way to cut power to the lock. It is one of the most important parts of safe how to wire a door access control system planning.
How it is usually wired
The emergency release is often wired in series with the maglock power feed so that when the unit is activated, the power circuit opens and the lock releases immediately.
For products, see Emergency Releases.
Normally Open vs Normally Closed Contacts
Understanding contact type is essential when reading an access control wiring diagram.
What Normally Open means
A Normally Open contact is open in its resting state. No current passes through until the relay activates and closes the circuit.
This is often used where power should only reach the lock during an unlock event, such as with many fail secure electric strikes.
What Normally Closed means
A Normally Closed contact is closed in its resting state. Current passes through until the relay activates and opens the circuit.
This is commonly used in maglock wiring, because a maglock needs power in its normal locked state and releases when that circuit opens.
Why the difference matters
If you wire a fail safe lock to the wrong contact type, the door may behave backwards. It might stay unlocked when it should be secure, or stay locked when it should release. This is one of the most common causes of confusion in keypad wiring and lock relay setup.
Wiring Scenario: Keypad to a Maglock
One of the most common examples of how to wire a door access control system is a keypad controlling a maglock.
Basic wiring logic
In a simple arrangement:
- The PSU powers the keypad.
- The PSU power feed for the maglock passes through the keypad relay.
- The relay uses the NC path for normal lock power.
- When a valid code is entered, the relay opens the circuit.
- The maglock loses power and releases.
Supporting devices
This setup often also includes:
- an exit button
- an emergency break glass
- possibly a door contact
- a timer or controller in larger systems
Because this is fail safe locking, every release device must be planned carefully.
Wiring Scenario: Exit Button
The exit button must allow safe and simple egress.
Basic button setup
The button is usually fitted inside the secure area. Depending on the system, it may:
- connect to the keypad exit input
- connect to the controller request-to-exit input
- break the maglock feed through a relay
Using the input on the controller or keypad is often the cleaner method because it keeps the release timing controlled.
Wiring Scenario: Emergency Release
The emergency release should override normal control logic.
Basic emergency release setup
In most maglock wiring layouts:
- Positive power leaves the PSU.
- It passes through the emergency release.
- It continues to the lock circuit.
- If the emergency unit is activated, the circuit opens.
- The lock loses power immediately.
This direct method is common because it does not rely on the keypad software or controller programming to release the door.
Power Supply Considerations
A basic door access control kit can still fail if the PSU is wrong.
Current draw
Always total the current requirements of:
- keypad or reader
- controller
- maglock or strike
- sounders or indicators
- ancillary relay modules
A maglock can draw much more current than a reader. That is why the lock often drives PSU choice.
Battery backup
Some sites require battery-backed PSUs to maintain operation during power cuts. Whether that is suitable depends on the door purpose and fire strategy.
Voltage drop
Long cable runs can reduce voltage at the lock. If the voltage falls too far, a maglock may weaken or a strike may fail to release properly.
Common Wiring Mistakes
Even simple systems can go wrong if the basics are missed.
Using the wrong relay contact
This is one of the biggest errors. A maglock usually needs the NC contact. A fail secure strike often needs the NO contact.
Mixing lock voltage
Do not connect a 12V lock to a 24V supply or assume the keypad output can power the lock directly without checking ratings.
Ignoring current draw
A PSU that is too small can cause intermittent faults that are hard to trace.
Poor cable identification
Untidy labelling leads to confusion during testing and maintenance. Mark every core clearly.
Wiring emergency devices incorrectly
Emergency releases should cut power as intended. If they are wired only as a signal input and not as a proper safety break, the result may be unsafe.
Failing to check manufacturer instructions
No two products are identical. Always confirm terminal names and relay logic against the manual.
Troubleshooting Checklist
If the system is not working as expected, check the basics in order.
Lock does not release
Check:
- PSU voltage at the lock
- correct relay contact used
- keypad or controller programming
- emergency release status
- cable continuity
Maglock does not hold
Check:
- voltage at the maglock
- PSU current capacity
- armature alignment
- any break in the NC circuit
- exit button wiring
Keypad powers up but does not unlock
Check:
- relay wiring
- access code programming
- lock voltage requirements
- whether the keypad relay is rated for the load
- correct NO or NC terminal use
Exit button does nothing
Check:
- whether it is wired to the correct input
- whether it should trigger a controller input or break power
- cable polarity if illuminated
- controller settings for request-to-exit
Emergency release cuts power but system will not reset
Check:
- whether the emergency unit needs manual reset
- whether the lock feed has been restored
- whether the PSU has latched into fault mode
- whether any fire alarm interface is still active
Best Practice Tips for Installers
Keep wiring neat
A tidy enclosure saves time later. It also reduces the chance of crossed cores and loose connections.
Test each stage
Do not wire everything and hope it works. Test the PSU first, then the keypad, then the relay action, then the lock release path.
Use the actual product diagram
A generic access control wiring diagram helps with planning, but the exact product manual should always win.
Think about the door’s purpose
A staff door, stock room, and fire exit all behave differently. The lock type and release method must match the door use.
FAQs
How do you wire a basic door access control system?
The basic process is to power the keypad or controller from the PSU, wire the lock through the correct relay contact, and add exit and emergency release devices in the correct circuit path. The exact method depends on whether the lock is fail safe or fail secure.
What is the difference between maglock wiring and strike wiring?
Maglock wiring usually uses a fail safe method, where the lock releases when power is removed. Strike wiring often uses fail secure logic, where power is applied only during unlock.
What is an access control wiring diagram?
An access control wiring diagram is a layout showing how the PSU, controller, keypad, lock, exit button, and other devices connect to each other.
Can I wire a maglock directly to a keypad?
Sometimes, yes, if the keypad relay is rated correctly and the system is designed for it. Many small standalone systems do this. Always check the manufacturer’s instructions and load limits.
Why is my keypad powered but the door will not unlock?
The relay may be wired incorrectly, the wrong NO or NC contact may be used, the lock voltage may be wrong, or the keypad may not be programmed correctly.
Do I need an emergency release with a maglock?
In many cases, yes. This is especially important on escape routes and controlled exits.
What does NO and NC mean in keypad wiring?
NO means Normally Open. NC means Normally Closed. These describe the relay contact state before activation and determine how power reaches the lock.
Conclusion
Learning how to wire a door access control system starts with understanding the logic of the door. Power has to reach the right device, in the right state, through the right contact path. Once you understand that, the rest becomes much easier to follow.
For most single-door systems, the core parts are simple: PSU, keypad or reader, lock, exit button, and emergency release where needed. The real difference comes from the lock type, especially when comparing maglock wiring with strike wiring. Get the relay logic right, size the PSU properly, and follow the product manual closely.
