A lot of access control faults get blamed on the reader, the keypad, or the lock. In many cases, the real issue sits further upstream. The access control power supply is the part that keeps the whole system stable, and when it is undersized, badly matched, or poorly planned, everything else starts to suffer.
For installers, that makes PSU choice more important than it may first appear. A system can have a good controller, quality hardware, and solid wiring, then still fail because the power side was treated as an afterthought. Weak door release, random resets, buzzing locks, reader dropouts, and unreliable video monitors can all point back to the same cause.
This guide explains what installers need to know about choosing the right access control power supply. It covers the difference between 12V and 24V DC, typical load requirements, how to calculate total current draw, when to use a boxed power supply, and why battery backup matters on some sites. It also looks at maglock power supply needs, common symptoms of underpowered systems, and the product categories worth reviewing before you order.
Why Power Is Critical in Access Control
Every access control system depends on stable, suitable power. That includes the obvious parts, such as locks and readers, and the less obvious ones, such as controllers, monitors, relays, and exit devices.
If the PSU is wrong, the whole system becomes less reliable. A lock may not release cleanly. A keypad may reboot. A monitor may lose video. A reader may seem to work until load increases elsewhere on the circuit.
The power supply affects the whole system
A good door entry power supply does more than turn devices on. It helps determine:
- lock performance
- reader stability
- controller reliability
- release timing
- battery backup behaviour
- long-term service life
This is why installers should think about the PSU at the start of the job, not at the end.
Undersized power causes avoidable faults
One of the most common mistakes is choosing a PSU that only just meets the expected load, or worse, does not meet it at all. This often happens when installers focus on the lock but forget the rest of the system.
For example, a small access control door may include:
- keypad or reader
- controller
- electric lock or maglock
- exit button
- emergency release
- sounder or LED indication
Add video entry, multiple readers, or longer cable runs, and the demand increases again. A properly specified access control power supply reduces these problems before they happen.
For suitable products, start with Power Supplies.
12V vs 24V DC Explained
Most access control and door entry systems use low-voltage DC power, with 12V DC and 24V DC being the most common options. The right one depends on the hardware.
What 12V DC is used for
A 12V power supply access control setup is very common. Many keypads, readers, small controllers, electric releases, and compact locks are designed for 12V DC operation.
This makes 12V a popular choice for:
- standalone keypads
- single-door access control
- smaller electric locks
- fob readers
- audio entry systems
- many light commercial installs
In simpler systems, a 12V power supply access control arrangement can be practical, cost-effective, and easy to source.
What 24V DC is used for
Some locks and entry devices are designed for 24V DC instead. This is common on certain larger locks, some video entry systems, and some commercial-grade installations where product design or site layout makes 24V more suitable.
A 24V system may be used where:
- the lock is rated for 24V
- the manufacturer specifies 24V-only hardware
- current demand is better handled at higher voltage
- cable run performance is a factor
Why voltage choice matters
The first rule is simple: match the PSU to the device specification. Do not assume every lock or reader can accept either voltage. Some products are flexible, but many are not.
Supplying the wrong voltage can cause:
- device failure
- weak or unstable operation
- overheating
- shortened service life
- immediate damage
Always confirm the required input for each item in the system before specifying the door entry power supply.
What Devices Need Power?
A common mistake is thinking only about the lock. In reality, almost every part of the system may place some load on the PSU.
Keypads
Many keypads use relatively low current, but they still need to be included in the total calculation. Backlit models, combined keypad-reader units, and outdoor devices with indicators may draw more than basic units.
When reviewing Access Control Kits, check whether the keypad load is already accounted for in the product guidance.
Readers
Proximity readers, fob readers, and multi-format readers all need power. Some use only a small amount. Others include LEDs, buzzers, or added functions that increase demand.
On multi-door sites, the load from several readers adds up quickly.
Controllers
Controllers are central to system logic, but they are often forgotten in PSU planning. Even where their draw is modest, they still need to be counted.
This matters even more on systems with:
- multiple doors
- timed outputs
- relay modules
- integrated monitoring
- network communication
Electric locks and releases
Electric Locks are one of the main power loads in many systems. Electric strikes, releases, and drop bolts may draw current only during activation, but that activation load still needs to be allowed for.
Some releases are low draw. Others are not. Always use the actual specification.
Magnetic locks
Magnetic Locks often have different behaviour from electric strikes because they are usually energised continuously in normal use.
That means a maglock power supply must support the lock for sustained operation, not just short unlock events. This is one reason maglocks often drive PSU choice.
Monitors and door panels
In video entry systems, indoor monitors and entrance panels also need power planning. On larger residential or commercial installs, these devices can significantly affect PSU specification.
For these systems, explore Video Entry Kits.
Calculating Power Requirements
A good PSU choice starts with a simple but accurate current calculation. Installers should total the load of all powered devices and allow sensible headroom.
Step 1: List every powered device
Make a full list of everything the PSU needs to support, such as:
- keypad
- reader
- controller
- lock or maglock
- monitor
- external panel
- relay module
- sounder
- illuminated exit button
Do not guess. Use the manufacturer data where possible.
Step 2: Note voltage and current draw
Record the required voltage and the current draw of each device. If a product lists current in milliamps, convert it if needed so the full list is easy to total.
For example:
- keypad: 100mA
- reader: 80mA
- controller: 120mA
- lock: 500mA
Total: 800mA
Step 3: Consider normal and peak load
Some devices draw a steady load. Others draw more only when active. A maglock may use continuous power. A strike may draw power during release. Video equipment may peak during operation.
The PSU needs to support the real operating condition, not the most convenient estimate.
Step 4: Add headroom
Do not size the PSU to match the exact calculated load. Leave spare capacity. A common approach is to allow a margin above the expected total so the PSU is not running at full output all the time.
This helps with:
- reliability
- future additions
- load variation
- longer service life
Step 5: Account for cable length and voltage drop
Longer runs can reduce voltage at the device. That matters especially for locks and outdoor equipment. A PSU may look correct on paper but still deliver poor results at the far end if cable losses are ignored.
This is one reason installers sometimes move from a basic door entry power supply plan to a more robust one after reviewing the site properly.
Boxed vs Plug-In Power Supplies
Not every system needs the same PSU format. One of the main choices is between a boxed power supply and a plug-in type.

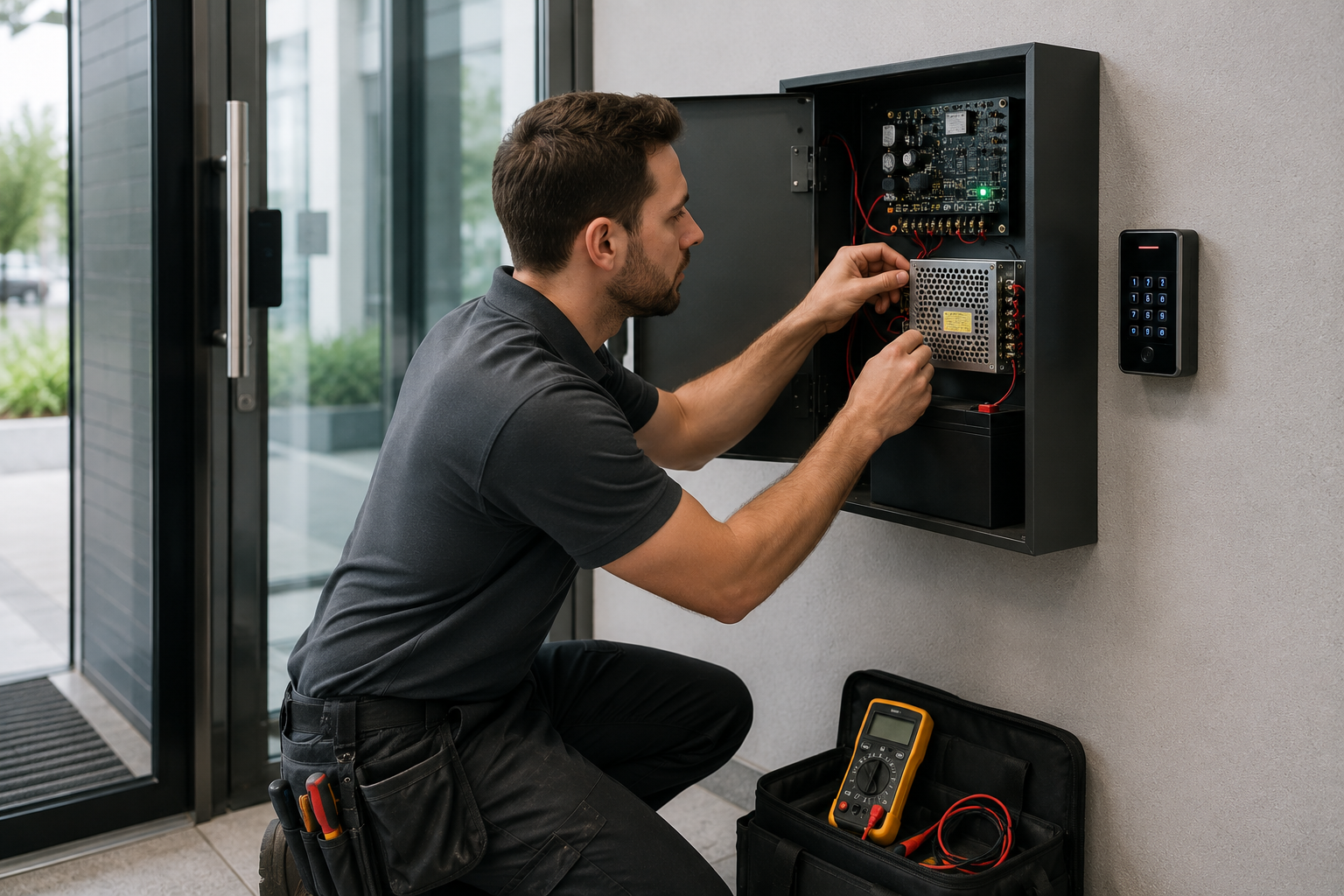

Boxed power supply
A boxed power supply is a housed unit, often with room for terminals, fuses, and sometimes battery backup. These are common in professional access control and door entry installations.
Why installers choose boxed power supplies
A boxed power supply is often preferred because it can offer:
- cleaner installation
- more secure termination
- easier integration with backup batteries
- better suitability for fixed commercial installs
- a more professional serviceable enclosure
For many access control jobs, especially those involving locks, controllers, or multiple devices, a boxed power supply is the better fit.
Plug-in power supply
Plug-in units can work well in lighter-duty or simpler applications, especially where the powered device has modest demand and the installation is more self-contained.
Where plug-in PSUs may suit
They may be suitable for:
- basic single-device systems
- small domestic-style setups
- temporary or very simple applications
Their limits in access control
Plug-in PSUs are often less suitable where you need:
- battery backup
- multiple powered devices
- tidy control cabinet layout
- lock power management
- easier service access
For most professional installations, a boxed power supply gives more flexibility.
Battery Backup and Maglock-Specific Needs
Battery backup is not needed on every site, but where continuity matters, it becomes a key part of PSU selection.
When battery backup matters
Backup power may be useful or required where the system should continue to operate during mains failure. This can matter on:
- commercial entrances
- residential communal doors
- video entry systems
- managed buildings
- sites with access management needs during outages
Battery backup can support controllers, readers, and some entry devices depending on the setup.
Maglock power supply needs
A maglock power supply needs special attention because maglocks are usually powered continuously to remain locked. That makes them different from many electric strikes.
Why maglocks change PSU planning
With a maglock, the PSU must handle:
- continuous lock load
- any associated reader or controller load
- release devices
- possible battery backup demands
- voltage stability over time
This is why the lock often determines the PSU size in maglock-based systems.
Supporting emergency release and safe operation
On doors using maglocks, installers also need to think about release logic, emergency break glass units, and what should happen during power failure. The PSU is part of that wider design, not a separate afterthought.
If you are pairing locks and PSUs, review Magnetic Locks and Power Supplies together.
Symptoms of Underpowered Systems
An underpowered system does not always fail in an obvious way. Often, it shows a pattern of inconsistent faults.
Lock does not release properly
A release may buzz, click weakly, or fail to open cleanly. This is common where the lock current demand was underestimated.
Maglock does not hold consistently
If a maglock drops out, feels weak, or behaves inconsistently, the maglock power supply should be checked along with alignment and wiring.
Keypad or reader resets
Random reboots, dim indicators, or unreliable reads can point to insufficient or unstable PSU output.
Video monitor issues
In systems using Video Entry Kits, underpowered devices may show poor screen performance, intermittent audio, or delayed response.
Problems appear only at busy times
If faults happen mainly when multiple devices operate together, the PSU may be reaching its limit under peak demand.
Recommendations for Installers
A strong PSU choice starts with planning, not guesswork.
Use the full device list
Count every powered component, not just the main lock.
Match the product specification exactly
Check voltage, current draw, and whether the device is 12V-only, 24V-only, or switchable.
Leave headroom
A PSU running too close to its limit is more likely to cause faults.
Choose the right housing type
For many installs, a boxed power supply is the cleaner and more practical choice.
Consider future expansion
If the site may add readers, monitors, or doors later, plan for that now.
Review related hardware together
PSU choice should be made alongside Electric Locks, Magnetic Locks, Access Control Kits, and Video Entry Kits, not in isolation.
FAQs
What is an access control power supply?
An access control power supply is the PSU that provides the correct voltage and current to devices such as readers, controllers, locks, and entry panels in an access control system.
What is the difference between 12V and 24V access control power supplies?
A 12V power supply access control setup is common for many readers, keypads, and smaller locks. Some systems and devices require 24V DC instead. The correct choice depends on the product specification.
What is a maglock power supply?
A maglock power supply is a PSU suitable for powering a magnetic lock, which usually needs continuous power to stay locked.
What is a door entry power supply?
A door entry power supply powers parts of a door entry or intercom system, such as monitors, entrance panels, locks, and related control devices.
When should I use a boxed power supply?
A boxed power supply is often best for fixed access control installs where you need secure terminations, cleaner installation, and possible battery backup support.
How do I know if my system is underpowered?
Common signs include weak lock release, reader resets, unstable monitors, poor maglock holding, and faults that appear during peak use.
Do all access control systems need battery backup?
No, but some sites benefit from it or require it depending on the building use, system design, and client needs.
Conclusion
The access control power supply is one of the most important parts of the system, even though it often gets less attention than the lock or reader. If the PSU is well matched, the whole installation is more stable, easier to maintain, and less likely to generate faults later. If it is undersized or poorly chosen, even good hardware can perform badly.
For installers, the key steps are clear: confirm voltage, total the current draw properly, allow headroom, think about backup needs, and choose the right format for the job. On many sites, that means using a boxed power supply rather than the smallest PSU that seems to fit on paper.
If you are specifying parts for a new install or upgrade, review the core product categories together before making a final choice: Power Supplies, Magnetic Locks, Access Control Kits, Video Entry Kits, and Electric Locks. That approach will give you a system that performs better from day one and holds up better over time.
