Relay & timer boards

Online Brochure |  Relay & timer boards

Relay

Single pole relay, double pole relay or timer relay available for all applications

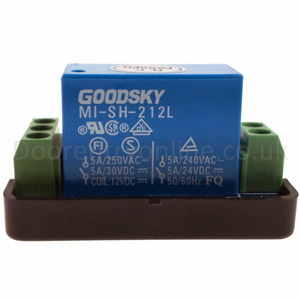

Relay DR1

Relay DR1


Price: £7.00 (£8.40 Including VAT at 20%)

Click here for a larger image

Download the specification and wiring diagram





The DR1 single pole 1amp relay can operate from a wide range of triggering voltage inputs both AC and DC
Simple to use
Can operate from a wide range of input voltages AC and DC
Voltage input connection not polarity conscious
Output voltage free change over contacts

Size: 15H x 50W x 25D



People who bought this item also bought:

1. Digital keypad - DK9520
2. Digital keypad - DK2850

Relay DR2

Relay DR2


Price: £9.50 (£11.40 Including VAT at 20%)

Click here for a larger image

Download the specification and wiring diagram

The DR2 double pole 1amp relay can operate from a wide range of triggering voltage inputs both AC and DC
Simple to use
Can operate from a wide range of input voltages AC and DC
Voltage input connection not polarity conscious
Output voltage free change over contacts


Relay DR3

Relay DR3


Price: £11.25 (£13.50 Including VAT at 20%)


Download the specification and wiring diagram





The DR3 single pole 10amp relay can operate from a wide range of triggering voltage inputs both AC and DC
Simple to use
Can operate from a wide range of input voltages AC and DC
Voltage input connection not polarity conscious
Output voltage free change over contacts

Relay DR4

Relay DR4


Price: £30.00 (£36.00 Including VAT at 20%)


Download the specification and wiring diagram









The DR4 'Quad' 10amp relay can operate from a wide range of triggering voltage inputs both AC and DC
Simple to use
Can operate from a wide range of input voltages AC and DC
Voltage input connection not polarity conscious
Output voltage free change over contacts


Relay TDR5

Relay TDR5


Price: £12.95 (£15.54 Including VAT at 20%)

Click here for a larger image

Download the specification and wiring diagram







The TDR5 is a simple to use, highly versatile timer relay. The timer relay can operate over a wide range of supply voltages (9-28V DC, 7 - 20 V AC). LED indication is used to show the state of the relay contacts
Simple to use
Will operate with a wide range of supply voltages AC and DC
Voltage supply connection not polarity conscious
Output voltage free change over contacts
LED indication of relay state

Size: 15H x 75W x 45D


Voltage 24v/12v reducer

Voltage 24v/12v reducer


Price: £19.50 (£23.40 Including VAT at 20%)

Click here for a larger image

Download the specification and wiring diagram




The 24v/12v Voltage reducer will convert either 16 - 30v DC or 12 - 24v AC inputs to a dedicated 12v dc output
Simple to use
Convert AC to DC
Convert 24v DC to 12v DC
LED power indication
Voltage input connection not polarity conscious
Output voltage: 10 - 12V DC

Size: 27H x 70W x 30D


4 Way isolation board FB4

4 Way isolation board FB4


Price: £5.25 (£6.30 Including VAT at 20%)


Download the specification and wiring diagram






The FB4 Distribution fuse board is used to provide 4 fused outputs from a single power source. The module accepts any voltage at terminals PWR and will split this into 4 outputs via individual 1A fuses to power auxiliary equipment

Size: 18H x 90W x 50D
