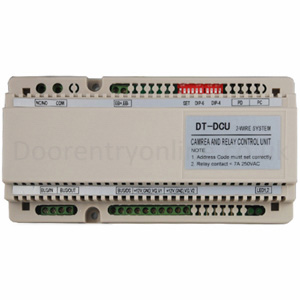

2 way CCTV unit - DCU

2 way CCTV unit - DCU2 way CCTV unit - DCU

2 way CCTV unit - DCU


Total Price:£39.89 (£47.87 inc VAT)


The DCU CCTV unit will allow to connect external CCTV camera/s to any of our range of Prestige 2 wire video entry system and at anytime, each DCU module will allow for 2 x CCTV cameras

Example:
1 x door panel & 3 x DCU that will allow for up to 6 x CCTV cameras
2 x door panels & 2 x DCU that will allow for up to 4 x CCTV cameras
3 x door panels & 1 x DCU that will allow for up to 2 x CCTV cameras

Do please read the FAQ's in case you need additional items
DCU manual


Surface or DIN rail fitting
cream in colour

DCU size: 90l x 170w x 60d mm
Do I require any additional items?
Please ensure the installation has the larger PS5 power supply installed, if not, then you will require one which can be found in the Accessories section here Accessories

How many cameras can I connect to each DCU?
The DCU will allow for 2 x CCTV cameras and 1 x door panel as standard

Example:
1 x door panel & 3 x DCU that will allow for up to 6 x CCTV cameras

2 x door panels & 2 x DCU that will allow for up to 4 x CCTV cameras

3 x door panels & 1 x DCU that will allow for up to 2 x CCTV cameras

What type of camera can I use?
You can use any CCTV camera that is 12v dc powered and provides a signal via coax cable. The camera must be no more than 500ma rated
