Description & Specifications:

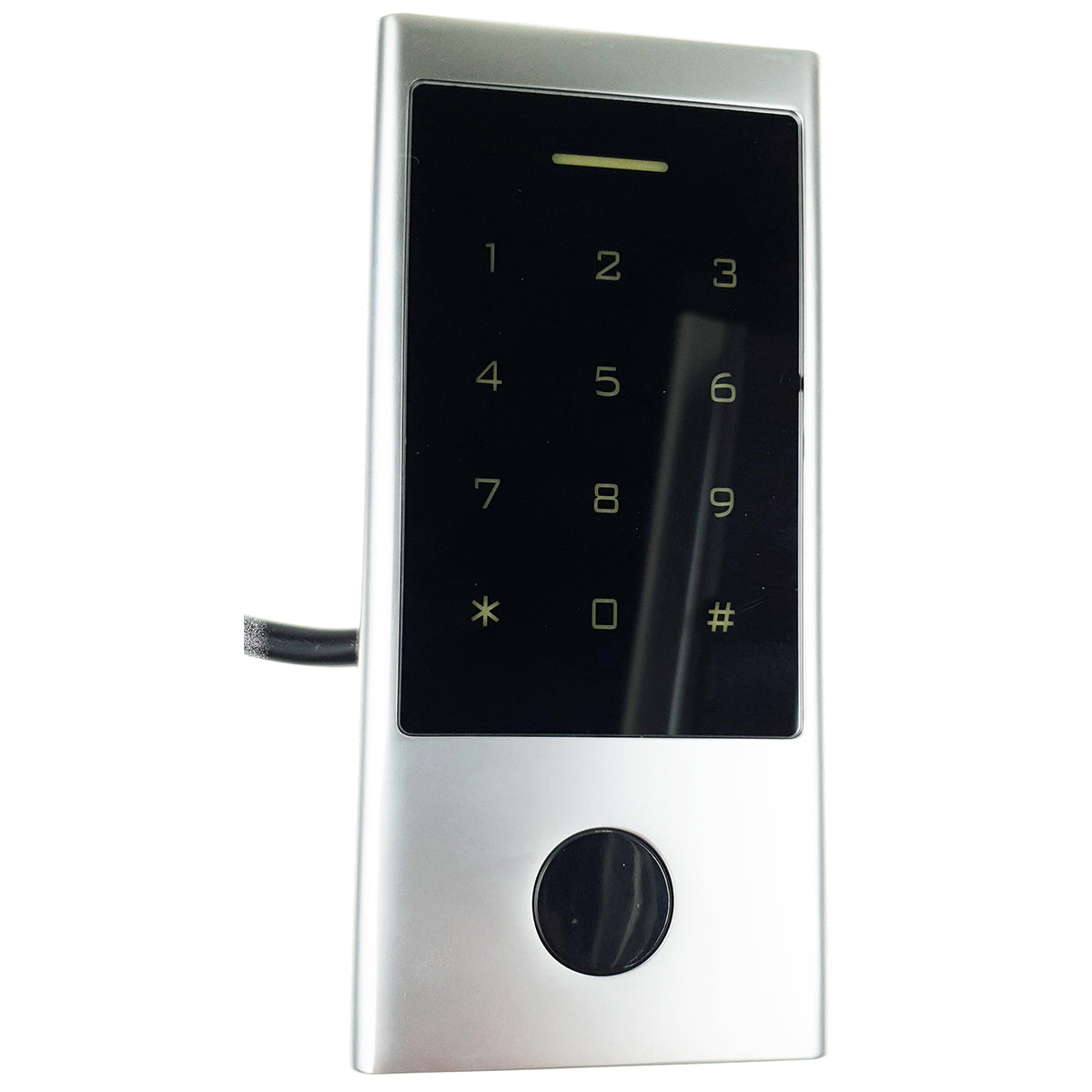

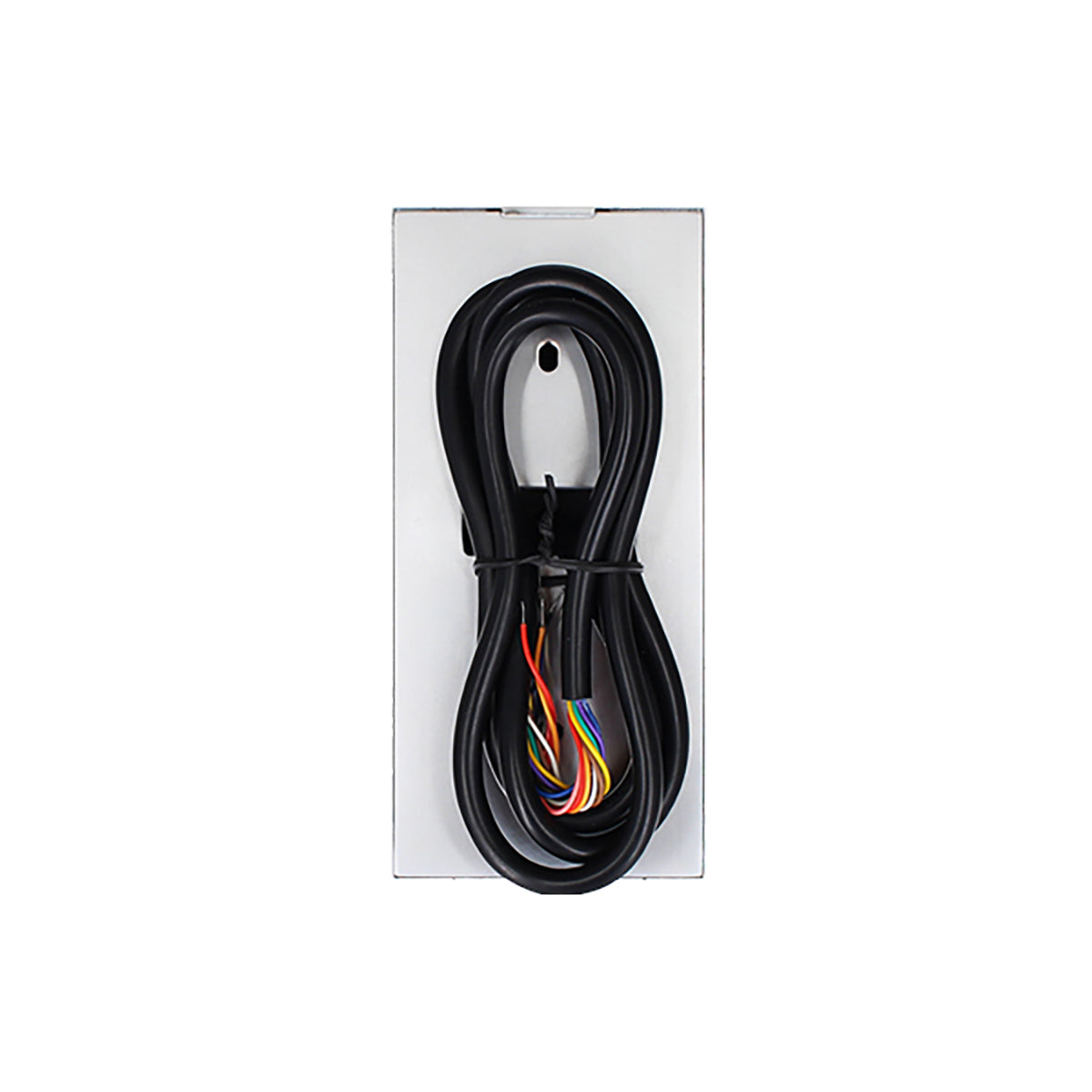

H1E-FP Digital Keypad & Fingerprint Reader
Overview
Meet the H1E-FP: a versatile, app-enabled digital keypad and fingerprint reader designed for superior security and convenience. This robust unit is housed in a vandal-resistant, electroplated zinc alloy casing, making it perfect for both indoor and outdoor installations. With an IP66 rating, it's built to withstand the elements.
This cost-effective 5-in-1 solution offers flexible access control through its responsive touchscreen keypad. Grant entry via PIN, key fob, fingerprint, or a combination of methods. For ultimate convenience, you can manage the keypad remotely using the TuyaSmart or Smartlife app.
Key Features
- Versatile Access: Use the touchscreen keypad, PIN (4-6 digits), key fob, fingerprint recognition, or the mobile app.
- Durable Construction: Made from vandal-resistant electroplated Zinc Alloy with an IP66 rating for weather protection.
- High Capacity: Supports up to 1,000 users, including 100 fingerprint users, 888 standard users, 10 visitor users, and 2 panic users.
- Smart Connectivity: Control and manage access from anywhere using the TuyaSmart or Smartlife mobile app.
- User-Friendly Interface: Features a backlit blue illuminated keypad for easy use in any lighting condition.
- System Integration: Fully compatible with the PC AC8000 Access Control System.
Specifications
- Power Input: 12V-24V DC
- Current Rating: 60mA (standby) - 150mA (active)
- IP Rating: IP66 (weather and vandal-resistant)
- Material: Vandal-resistant electroplated Zinc Alloy
- User Capacity: 1,000 (100 Fingerprint, 888 Standard, 10 Visitor, 2 Panic)
- Card/Fob Type: Standard EM-RFID (125kHz) proximity cards or key fobs
- Relay Output: One (N.C. & N.O. contacts), 2A maximum
- Relay Timer: Adjustable from 1 to 99 seconds
- Exit Button Input: Yes
- Mounting: Surface mount
- Dimensions: 143mm (H) x 68mm (W) x 25mm (D)
- Additional Features: Keyboard programmable, non-volatile memory, 3-LED status display.
Frequently Asked Questions (FAQs)
Q: Can I install this keypad outdoors? A: Yes. The H1E-FP is IP66 rated, meaning it is fully protected against dust and powerful water jets, making it ideal for external use.
Q: Does this keypad work with standard key fobs or cards? A: Yes, it is compatible with any standard Wiegand 26-bit EM-RFID (125kHz) card or key fob.
Q: How do I program new key fobs or cards? A: All programming is done simply and directly through the keypad interface.
Q: Can I restrict access to only key fobs or codes? A: Absolutely. You can configure it for access via key fob only, code only, or a combination of both for enhanced security.
Q: Is it possible to connect an external exit button? A: Yes, the keypad includes an input for a separate exit button.
Q: Can I use two keypads for a single door (entry and exit)? A: Yes, you can set up two keypads to manage both access and exit for one door.
What's Included?
- 1 x H1E-FP Digital Keypad
- 10 x EM-RFID Blue Key Fobs
- Connection Drawings & Manuals (Quick Programming Guide, Keypad Manual, App Manual)
