Description & Specifications:

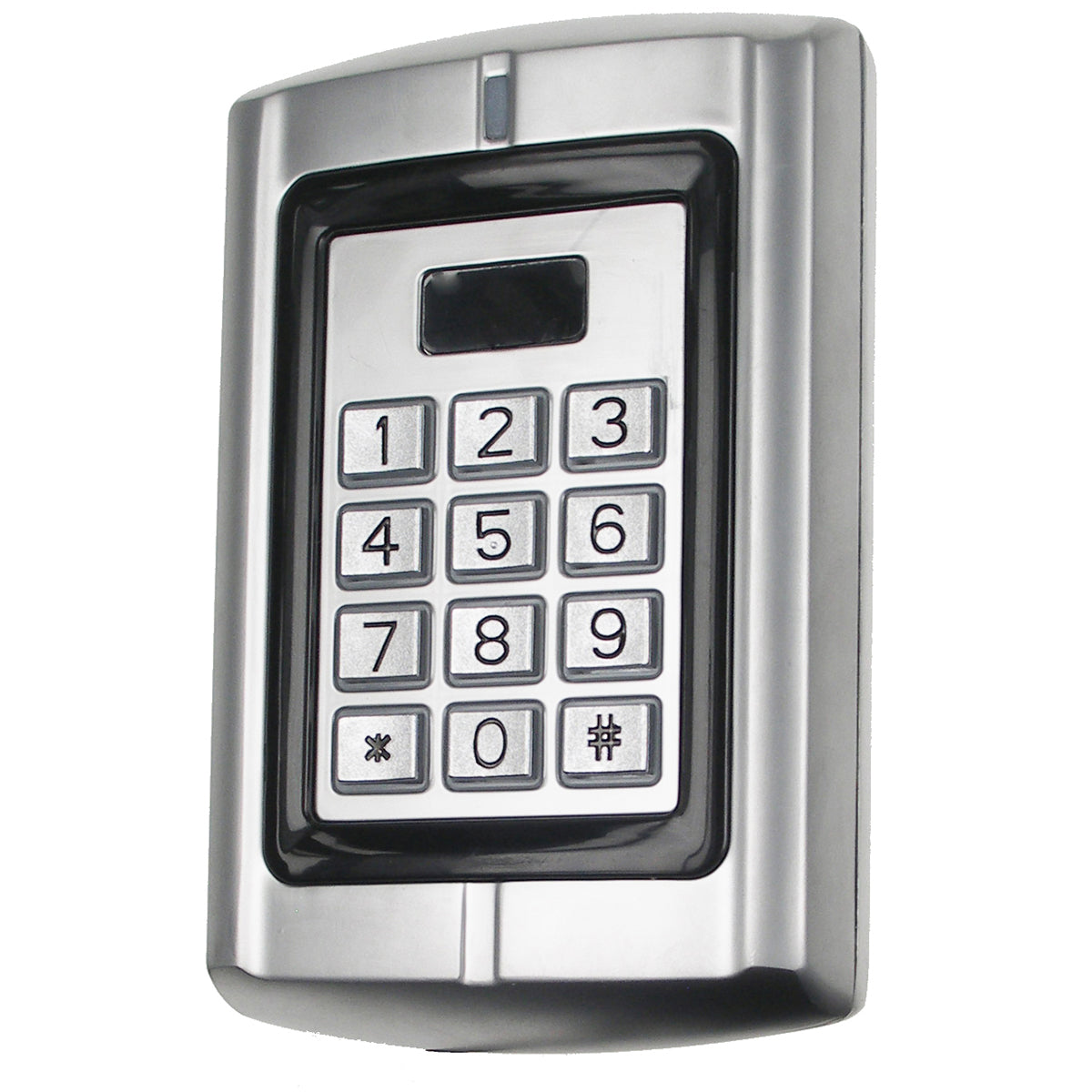

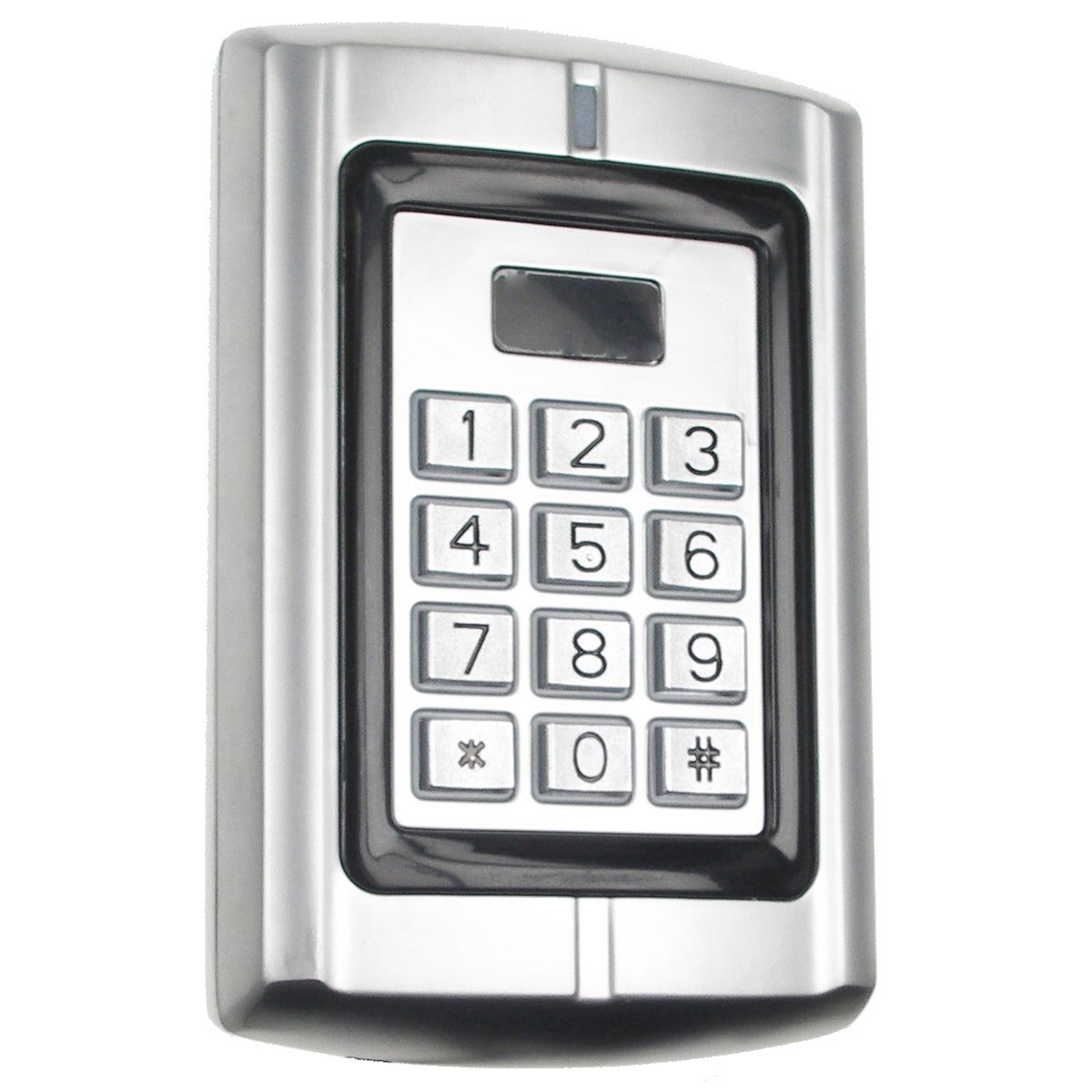

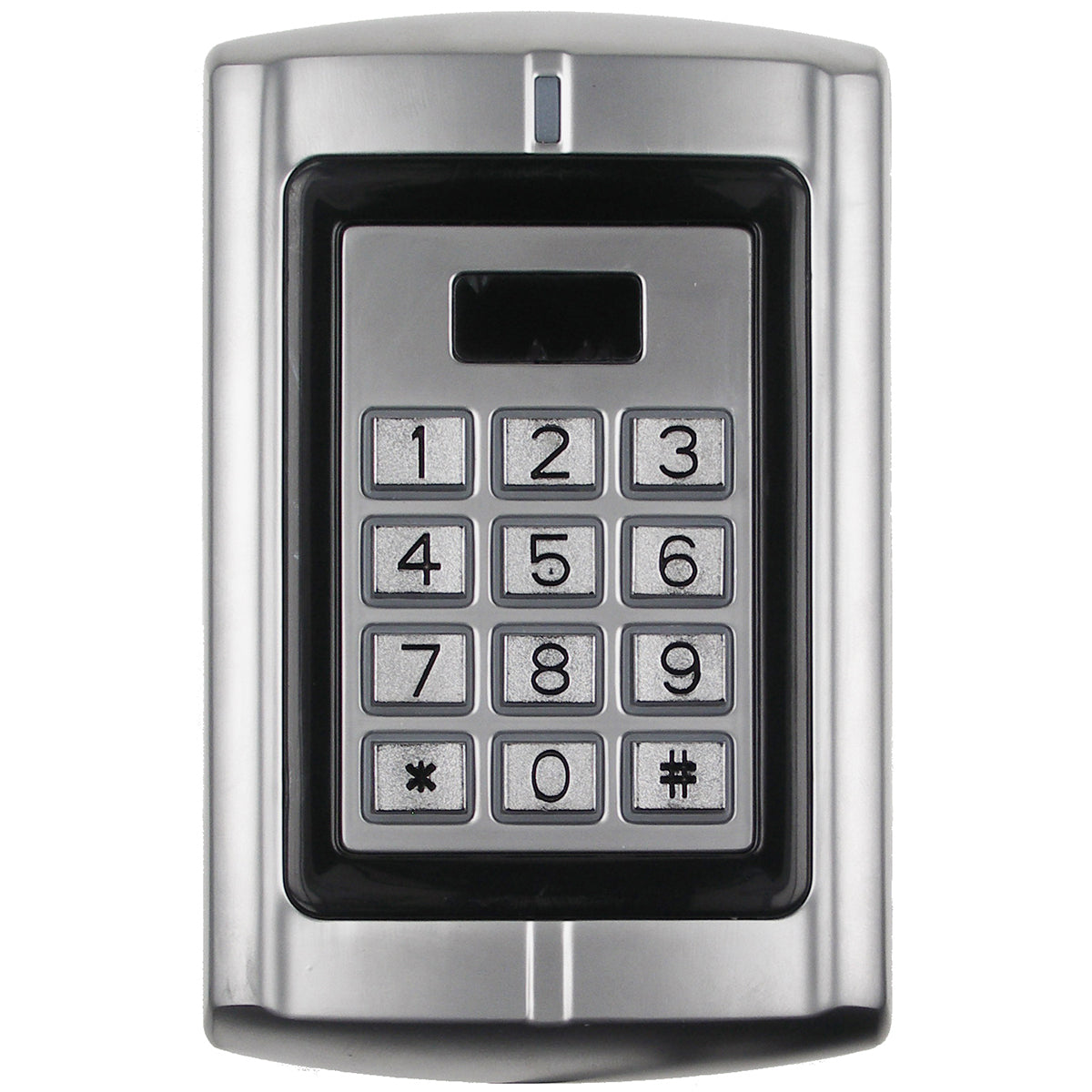

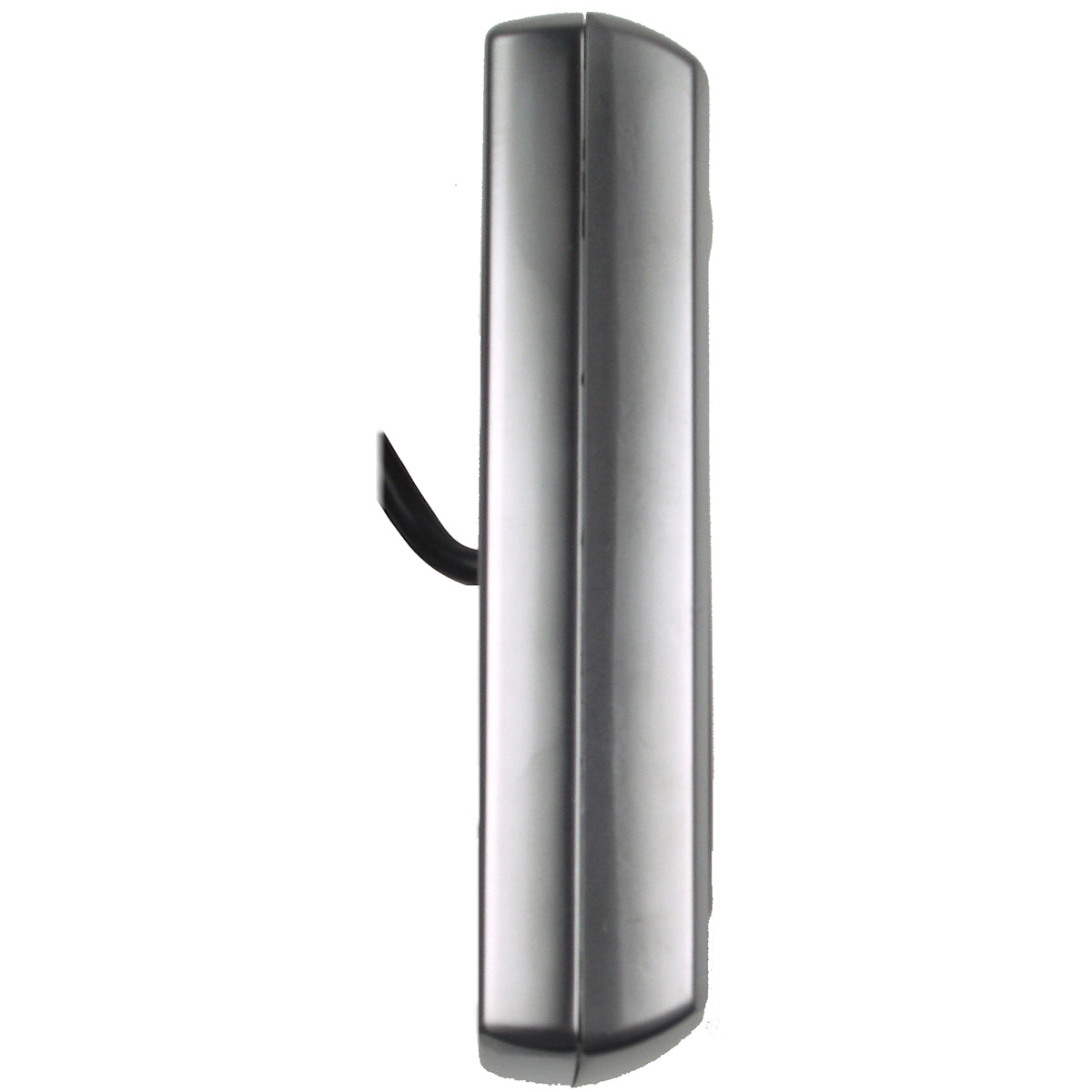

Digital Keypad R3K: Overview
The Digital Keypad R3K is a cost-effective, '4-in-1' access control solution. This fully-featured, self-contained unit combines a high-security digital keypad, a proximity card reader, and a key fob reader into a single device. Manufactured from vandal-resistant, electroplated Zinc Alloy and rated IP68, it's ideal for both internal and external use. The R3K provides secure access via PIN, key fob, or a combination of both, and includes a 'Bell Push' button to announce visitors.
Note: This keypad is a standalone unit and is not compatible with the PC AC8000 Access Control System.
Key Features
- Versatile Access: Supports 4-6 digit PIN codes (confirmed with # button), EM-RFID key fobs/cards, or a combination for enhanced security.
- Durable Construction: Built with a vandal-resistant Zinc Alloy casing and sealed with epoxy resin, making it weatherproof (IP68) and suitable for any environment.
- User-Friendly Interface: Features a blue back-lit keypad for clear visibility and three LED status indicators.
- High Capacity: Stores up to 1,100 user codes/fobs for the primary relay and 100 for the secondary relay.
- Dual Relay Control: Equipped with two 2-amp relay outputs (N.C. & N.O. contacts) with adjustable timers from 1 to 99 seconds, perfect for controlling two separate doors or devices.
- Easy Programming: All features are programmable directly from the keypad, with a non-volatile memory that retains all data during a power failure.
- Expandable: Includes an input for an external exit button.
Specifications
- Power Input: 12v-24v DC
- Current Rating: 60mA
- IP Rating: IP68 (fully protected against dust and powerful water jets)
- Keypad Material: Vandal-resistant, electroplated Zinc Alloy with back-lit buttons
- Card/Fob Type: Standard EM-RFID 125khz 26-bit format
- Mounting: Surface mount
- Dimensions: 128mm (H) x 82mm (W) x 28mm (D)
- Cable Length: 750mm
Frequently Asked Questions (FAQs)
Can I use this keypad outdoors? Yes, its IP68 rating ensures it is completely weatherproof and protected against dust, heavy seas, or powerful jets of water.
Does this keypad work with any standard EM-RFID card or key fob? Yes, it is compatible with any standard Wiegand 125khz 26-bit EM-RFID card or key fob.
How do I program new key fobs or cards? Programming is done simply and directly through the keypad itself.
Can I use just key fobs for access, without a PIN? Yes. You can configure the system for access via key fob/card only, PIN only, or a combination of both.
Can I connect an extra exit button? Yes, the unit has an input for an additional exit button.
Can I use two keypads to control entry and exit for one door? Yes. If you use two keypads, the same key fobs/cards can be programmed to operate both units.
Maintenance Tip
To ensure long-lasting, smooth operation, we recommend periodically cleaning the keypad fascia. This prevents dirt and grime from accumulating between the buttons, which could cause them to become sticky over time.
What's Included?
- 1 x Digital Keypad R3K
- 10 x Blue EM-RFID Key Fobs
