Description & Specifications:
Overview

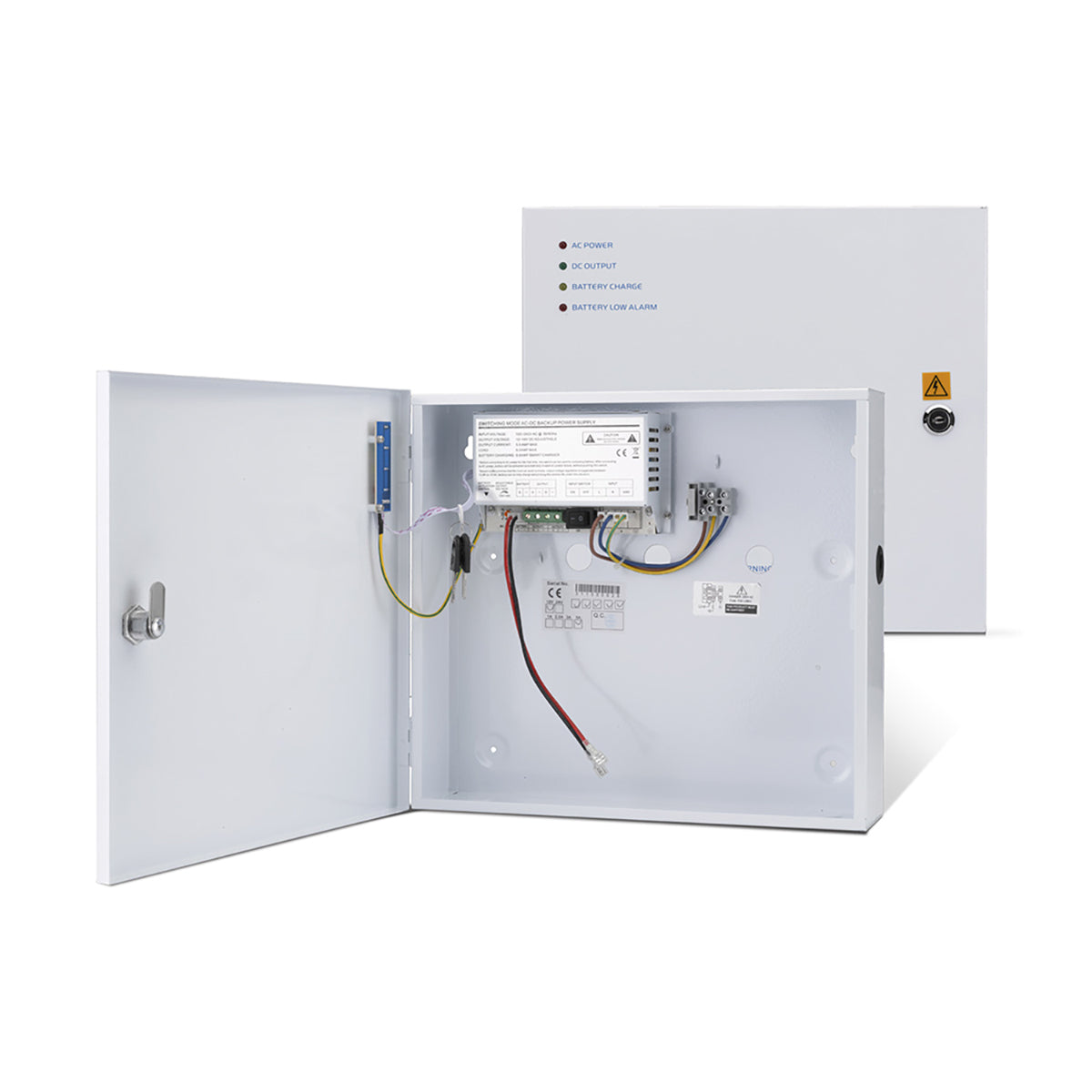

The PS1A-12VL is a large, ivory-white hinged cabinet housing a 12-volt DC, 1-amp switch-mode regulated power supply. It features an additional battery charging output with electronic deep discharge protection to preserve battery life. LED indicators clearly display the status for mains input, battery output, and short circuits. For thermal management, the enclosure is vented to allow for heat dissipation and includes multiple cable entry points for installation flexibility.
Weight: 2.900 kg Dimensions: 310h x 340w x 80d mm
Specifications
- Model: PS1A-12VL
- Enclosure: Large, ivory-white hinged cabinet
- Output: 12V DC, 1A (Switch-mode, regulated)
-
Battery Support:
- Additional battery charging output
- Electronic deep discharge protection
- Indicators: LED for mains input, battery output, and short circuit protection
-
Features:
- Vented enclosure for heat dissipation
- Multiple cable entry points
