Description & Specifications:
Access Control System inc. Power Supply, Access Keypad, Vandal Resistant Exit Button, Emergency Break Switch & Magnetic Lock & Bracket
Overview
The Access Control Kit 19 is a comprehensive keypad and magnetic lock system designed for robust and reliable security. Ideal for homes, offices, and other environments, this kit provides a complete access control solution, combining a dual PIN and/or key fob reader with a magnetic lock release, exit button, and emergency break switch.
What's in the Box?
- K401-IE Digital Keypad: Supports up to 1,000 user codes or fobs.

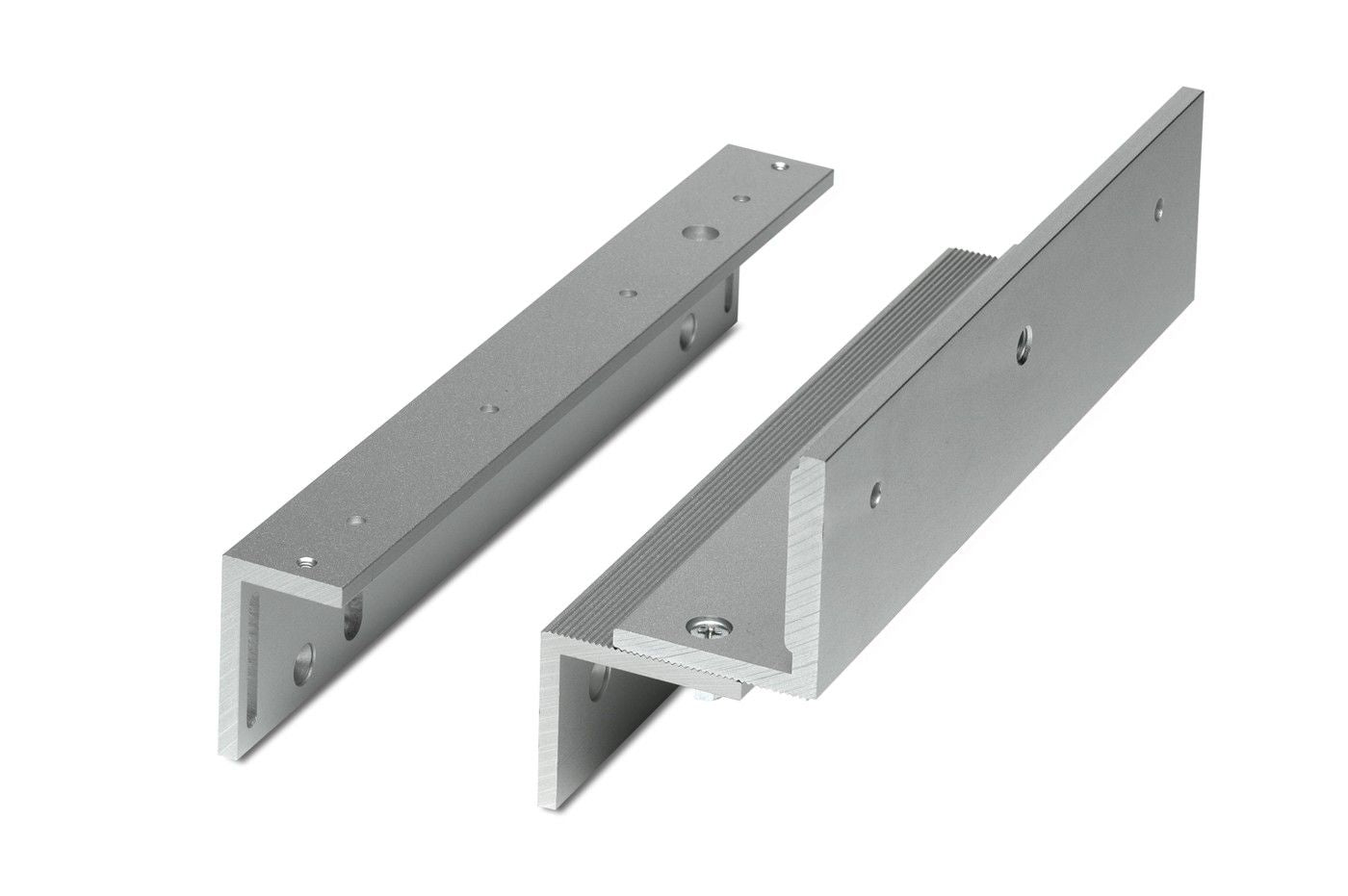

- Magnetic Lock: 600 lbs holding force with adjustable ZL mounting brackets.
- Stainless Steel Exit Button (DRBSS02S-PTE): A durable, surface-mounted button for easy egress.
- Emergency Break Glass Switch: A resettable switch with a protective cover for urgent situations.
- 12V DC Power Supply: A regulated, 1-amp power supply unit.
Component Specifications
1. K401-IE Digital Keypad & Reader
A versatile and secure '3-in-1' unit that provides access via PIN, key fob, or a combination of both.
- Construction: Vandal-resistant, electroplated Zinc Alloy housing.
- IP Rating: IP66, fully weather-resistant for internal or external use.
- Capacity: 1,000 user codes and/or EM-RFID proximity fobs/cards.
- PIN Length: 4-6 digits.
- Keypad: Backlit blue illuminated buttons for visibility.
- Input Voltage: 12V-24V DC.
- Relay Output: One 3A max relay with N.C. & N.O. contacts and an adjustable timer (1-99 seconds).
- Memory: Non-volatile memory retains all data during power outages.
- Dimensions: 120mm (H) x 76mm (W) x 25mm (D).
2. Magnetic Lock (600-S)
A slimline, surface-mounted magnetic lock designed for secure closure.
- Holding Force: 272kg (600 lbs).
- Power Input: 12V / 24V DC (selectable via jumper links).
- Current Draw: 500mA @ 12V DC | 250mA @ 24V DC.
- Magnet Dimensions: 250mm (L) x 42mm (W) x 26mm (D).
- Armature Plate Dimensions: 185mm (L) x 38mm (W) x 12mm (D).
3. Emergency Break Glass Switch
A surface-mounted, resettable green switch for emergency door release.
- Features: Comes with a clear protective cover and one reset key.
- Connections: Single pole with double output for C/NO/NC wiring.
- Dimensions: 90mm (H) x 88mm (W) x 56mm (D).
4. Stainless Steel Exit Button
A large, IP66-rated button for convenient exit.
- Construction: 2mm stainless steel facia with an alloy surface mount back box.
- Contacts: Changeover contacts (C/NO/NC).
- Dimensions: 85mm (H) x 85mm (W) x 42mm (D).
5. Power Supply Unit
A switch-mode regulated power supply housed in a small ivory white cabinet.
- Output: 13.8V DC, 1 Amp.
- Features: Includes an additional battery charging output and electronic deep discharge protection.
- LED Indicators: Shows status for mains input, DC output, and battery charge.
- Dimensions: 225mm (H) x 195mm (W) x 75mm (D).
Frequently Asked Questions (FAQs)
-
Can the keypad be installed outside? Yes, the K401-IE keypad is IP66-rated and suitable for external use.
-
Is the magnetic lock weatherproof? No. If installed outdoors, the lock and its electrical connections must be protected from direct rain and moisture to prevent damage.
-
Is this system easy to install? Installation difficulty depends on your experience. However, the system is designed to be straightforward to install and program. Full connection drawings and programming guides are provided.
-
Can I use two keypads for entry and exit? Yes. You can order an additional keypad for this configuration.
-
What type of cable do I need? Standard 3- or 4-pair alarm cable is recommended and can be purchased from most electrical or DIY stores.
Tech Tips
- Maintenance: Periodically clean the keypad facia to prevent dirt from accumulating and causing buttons to stick. Regular maintenance ensures long-lasting performance.
- Powering the Lock: The magnetic lock supports both 12V and 24V DC. Before powering on, double-check that your wiring corresponds to your chosen voltage to avoid overheating or lock failure.
- Lock Surface: To ensure optimal performance, periodically clean the surfaces of the magnet and armature plate with a light oil.
